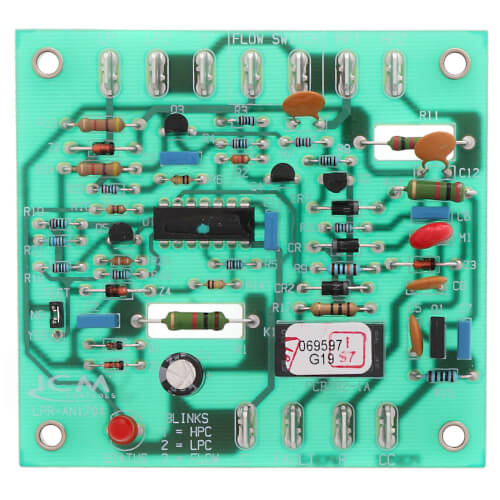

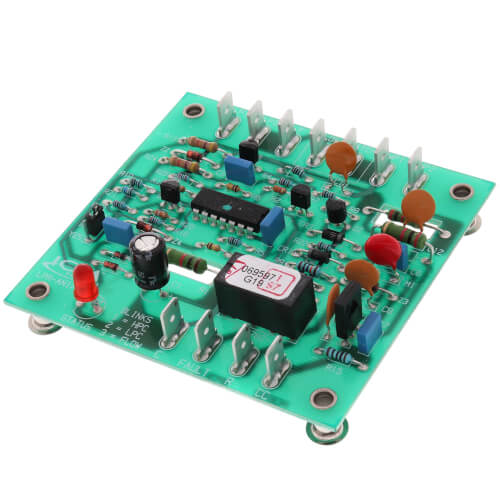

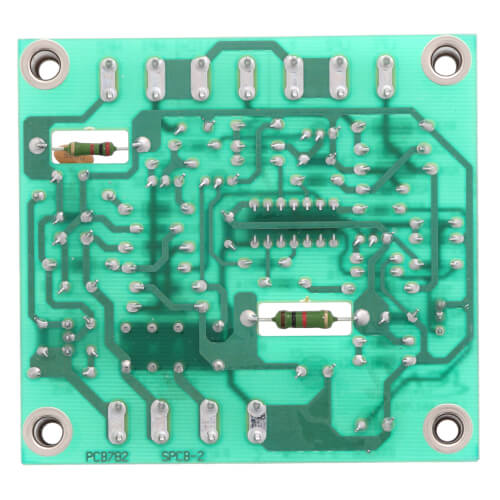

ICM222 Lockout Protection Module, 18-30 VAC

ICM offers low cost lockout protection modules that monitor various switch inputs to help protect your compressor.

Features

• Low cost lockout protection module
• Anti-short cycle/lockout control
• Pressure/flow switch monitoring
• Alarm output during lockout
• 5-minute ASC delay (5 second test mode)
• LED fault codes for lockout status
• Test mode for reduced test time
• Conformal coating for moisture protection

Mode of Operation:
The control will begin the 5-minute time delay upon a Y call from the thermosat. After the time delay expires, the compressor contactor will be energized as long as the high and low pressure switches are closed. If either switch is open after the delay expires, the compressor will not energize. If either switch opens while the compressor is energized, it will de-energize immediately and begin the anti-short cycle delay. The compressor will not be allowed to turn on again until the anti-short cycle delay expires and both pressure switches are closed.

The flow switch will have a 30-second bypass timer in which the control will ignore an open flow switch for the first 30-seconds. If the flow switch remains open after the 30-second bypass timer expires, the unit will de-energize the compressor and begin the anti-short cycle delay. If the control experiences three high pressure, low pressure, or flow switch faults in a 60-minute period, it will lockout the compressor and energize the fault output. A manual reset of power will be required to reset the lockout condition.

The control has a status LED to indicate which type of fault or lockout has occurred. If a high pressure fault or lockout occurs, the status LED will blink once. If a low pressure fault or lockout occurs, the status LED will blink twice. If a flow switch fault occurs, the status LED will blink three times.
