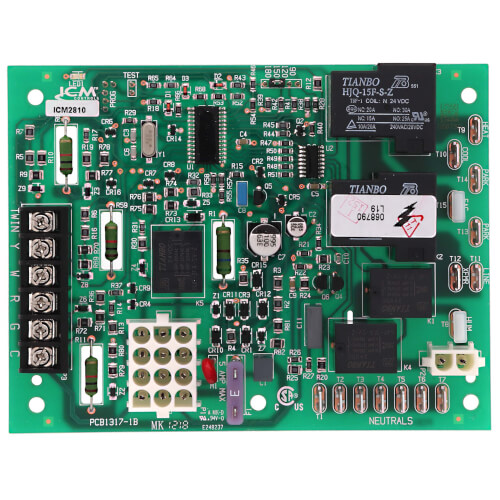

ICM2810 Furnace Ignition Control Board for Goodman PCBBF136 and PCBBF140
ICM2810 ICM2810 Furnace Ignition Control Board for Goodman PCBBF136 and PCBBF140
Add to List
List
Free Shipping On orders over $99
Need replacement parts for this unit?
Low cost, form, fit and functional replacement furnace control board
Features:
- Low cost, Goodman replacement board
- Microprocessor-based precision
- Controls inducer and blower fan motors, hot surface ignitor, and gas valve
- Monitors timing, trial for ignition, flame sensing, pressure and limit switches, and lockout
- Designed for 100% gas shutoff in case of ignition failure
- Reverse polarity protection
- Compatible with 24 VAC standard thermostat
- Twinning compatible with another ICM2810 control board
- Compatible with LP or natural gas
- Provides diagnostic LED to aid in testing/troubleshooting
| Product Type: |
Control Board |
| Operating Temp Range: |
-40° to 176°F |
| Humidity Range: |
5% to 95% Relative Humidity (Non-Condensing) |
| Voltage Range: |
Line (98 - 132 VAC) @ 60Hz |
This item is compatible with the following Goodman, Goodman-Amana model numbers.
Type the model number of your unit:
or check the list below of compatible model number for this part.
Click on any model number to view complete parts list
There are no compatible model numbers that match your entry.
Please note: Many replacement parts have subtle differences between them and can be easily confused. Attempting to install the incorrect part voids the return coverage. If you are not completely sure your order is correct please give us a call at 1-888-757-4774.
