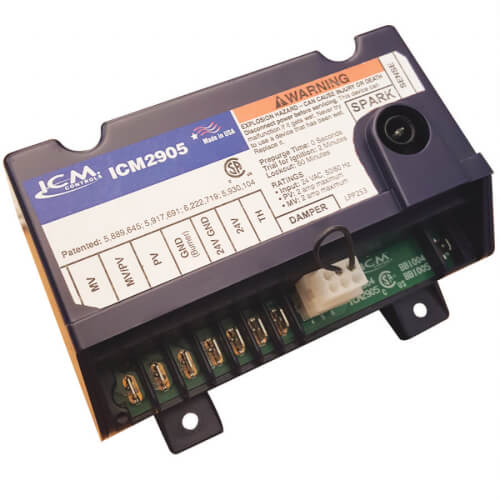

Intermittant Pilot Ignition Control (Replaces Reznor 257010)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$121.09 each
Backorder
Get it Thu, Aug 21 - Fri, Sep 19
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Intermittent Pilot
Description
–
*Intermittent pilot gas ignition control module*For use with intermittent pilot boilers, furnaces and other heating appliances*Microprocessor-based*Monitors timing, trial for ignition, flame sensing and lockout* Remote flame sensing*2 minute trial for ignition*60 minute lock out if pilot flame is not sensed in 2 minutes* Compatible with LP or natural gas* Damper control input
Features
Specifications
Features
- Intermittent pilot gas ignition control module
- For use with intermittent pilot boilers, furnaces and other heating appliances
- Microprocessor-based
- Monitors timing, trial for ignition, flame sensing and lockout
- Remote flame sensing
- 2 minute trial for ignition
- 60 minute lock out if pilot flame is not sensed in 2 minutes
- Compatible with LP or natural gas
- Damper control input
Specifications
- Control Voltage: 18-30 VAC
- Frequency: 50/60 Hz
- Humidity: 5%-95% R.H. (non-condensing) at +55°C
- Operating Temperature: -40°F to 165°F, -40°C to 75°C
- Pilot Valve: 2A @ 24 VAC
- Main Gas Valve: 2A @ 24 VAC
- Current Draw: 100 mA maximum
- Pre-Purge Delay: 0 seconds
- Trial for ignition: 2 minutes
- Lock Out Time: 60 minutes
Specs
–
| Product Type: | Intermittent Pilot Gas Ignition |
|---|---|
| Control Voltage: | Line 24V (18-30 VAC) 50-60Hz |
| Anticipator Setting: | 2A plus valve load @ 24 VAC |
| Pre-Purge Time: | 0 Seconds |
| Ignition Type: | Intermittent Pilot |
| Operating Temp Range: | -40° to 165°F |
| Relative Humidity: | 5% to 95% R.H. (non condensing) |
| Replaces: | 257010 |
| OEM: | Reznor |
