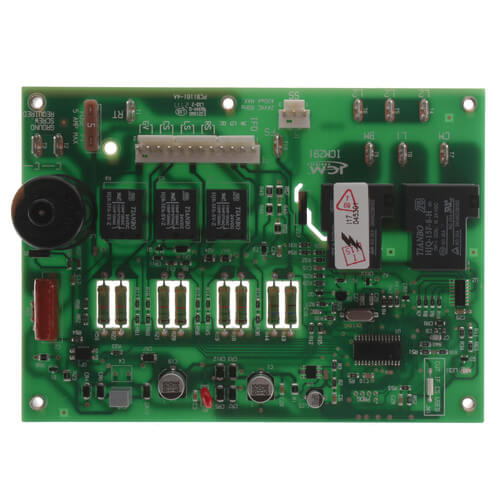

ICM291 Gas Ignition Control Board
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$228.88 each
In Stock
Get 13 Wed, May 14
Order by 6PM, receive Wednesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Gas Ignition Control Board - replacement for Carrier LH33WP003/3A control boards
Specifications:
Timing:
LED Indicators:
Flashing-fault codes Inputs:
Flame Sensing Outputs:
Specifications:
- Control Voltage: 24 VAC (18-30 VAC), 60Hz
- Line Voltage: 208/230 VAC, 60Hz
Timing:
- Pre-Purge: 45 seconds
- Trial for Ignition: 5+2 seconds
- Retry Period: Every 20 seconds for 15 minutes
- Lockout: Manual reset
- Post-Purge: 45 seconds
LED Indicators:
- Red LED: Steady ON-normal operation.
Flashing-fault codes Inputs:
- Power: RT and C
- Thermostat Interface: R,W, and G
- Safety Switches: RS, LS, and CS
- Combustion Motor Hall Effect Sensor
Flame Sensing Outputs:
- Spark - Gas Valve: GV
- Combustion Motor: CM
- Blower Motor: BM
- Indoor Fan Motor: IFO
Specs
–
| Product Type: | Control Board |
|---|---|
| Control Voltage: | 24 VAC @ 60 Hz |
| Line Voltage: | 208/230 VAC @ 60 Hz |
| Power Consumption: | 0.3A |
| Operating Temp Range: | -40° to 176°F |
