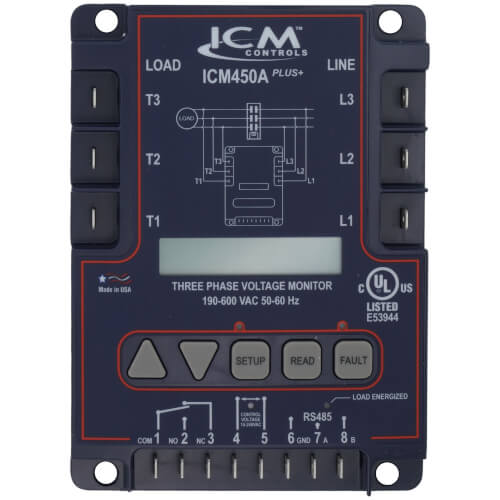

ICM450A+ 3 Phase Line Voltage Monitor, Delay on Break Timer, Modbus RS485 Port & Real Time Clock (Eng. & Spanish)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$242.08 each
In Stock
Order by today, receive Tuesday
MANUALS (3)
This item replaces: ICM450, ICM450S, ICM450C
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Programmable
190-600 VAC
Surface
Description
–
The ICM450A PLUS+ is the latest 3-phase offerings, providing superior motor protection from premature failure and damage caused by common voltage faults such as phase unbalance, over/under voltage, phase loss and phase reversal.
A design upgrade from our flagship ICM450, these newest models feature an easy to read, backlit display that makes quick work of adjusting the variable settings to better tailor the unit to the application. Common 1/4" spade terminations eliminate the potential for exposed wires and allow for a better and safer connection. Include menu options for English and Spanish readouts.
Product Features:
A design upgrade from our flagship ICM450, these newest models feature an easy to read, backlit display that makes quick work of adjusting the variable settings to better tailor the unit to the application. Common 1/4" spade terminations eliminate the potential for exposed wires and allow for a better and safer connection. Include menu options for English and Spanish readouts.
Product Features:
- Backlit LCD
- Simultaneous 3-phase true RMS voltage monitoring
- Factory calibrated
- 3-phase voltages simultaneously displayed on LCD
- Fault memory
- Fault monitoring: High/low voltage, voltage unbalance, phase loss, phase reversal
- Real time clock, date and time stamped events
- Simple configuration
- Fully adjustable variables
- Modbus RS485 communications
- LED indicators
- Common 1/4" quick connect terminations
- English or Spanish menu options
- Input:
- Line Voltage: Universal, 190-600 VAC
- Frequency: 50-60 Hz
- Load Side Monitoring: Optional
- Control Voltage: 18-240 VAC
- Output:
- Type: Relay, SPDT
- Voltage Range: 277 VAC @ 6A maximum
- Operating Temperature: -40° to 149°F (-40° to 65°C)
- Storage Temperature: -40° to 185°F (-40° to 85°C)
- Mounting: Surface mount using (2) #8 screws
- Terminations: 1/4" quick connects
- Weight: 12 ounces (341 grams)
- ModBus: RS485 Communication
Specs
–
| Frequency: | 50-60 Hz 50-60 Hz |
|---|---|
| Programmability: | Programmable |
| Voltage: | 190-600 VAC |
| Operating Temp Range: | -40°F to 149°F |
| Control: | 18-240 VAC |
| Delay on Break Timer: | 0-10 Minutes |
| Output: | SPDT (relay) |
| Mount: | Surface |
| Communication: | Modbus |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-3 of 3 reviews
RTU protection
Installed 4 of these after we had a phase drop and cook our VFD's and blower motors. Easy to install and should help protect us for any future issues.
Chris
East Providence, RI
4 months ago
Verified Buyer
Was this review helpful to you?
Works great!

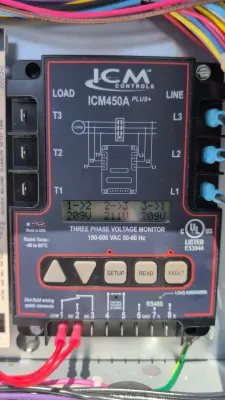

It was mounted outside the air conditioner where it's easy to read. Picked up a brown out the first day in use.
