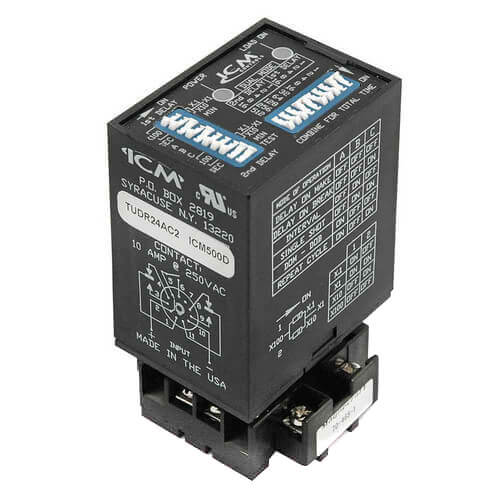

ICM500 Multimode Digital Timer - 24 VAC, 8 Pin
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
ICM500 has been discontinued
Discontinued December 9, 2020
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces: ICM500D
Product Highlights
–
24V
Description
–
Features
Mode of Operation - When power is applied to the input, the time delay begins. After the time delay is complete, the contacts transfer and remain transferred as long as power is applied. The control is reset by removing power during or after the time delay period.
- Multi-mode selectable time delay ranges
- Crystal timing accuracy
- Microprocessor controlled
- 4 single and two dual timing modes
- DOM, DOB, interval, single shot (4)
- DOM/DOB and repeat cycle (2)
- Easy to select, switch-settable delays
- Bright LEDs indicate input and output
- Switch-settable time delays: 1 to 1,023 seconds or minutes in multiples of 0.1, 1, 10, 100
- 75 millisecond reset time during and after timing; May be reset during the time delay period without false output
- 8 pin base standard models
- 8 pin is for single pole; 11 pin is for double pole
- Base sold separately
Mode of Operation - When power is applied to the input, the time delay begins. After the time delay is complete, the contacts transfer and remain transferred as long as power is applied. The control is reset by removing power during or after the time delay period.
Specs
–
| Time Delay: | Selectable |
|---|---|
| Product Type: | Multimode |
| Voltage: | 24V |
| Output: | 8-pin = SPDT |
| Frequency: | 50-60 Hz |
| Power Consumption: | 2 Watts (max) |
| Dimensions: | 4" x 2.5" x 1.75" |
| Replaces: | 32377 32397 |
| OEM: | MARS |
