Button Thermal Photocontrol, Front Lens (120V)

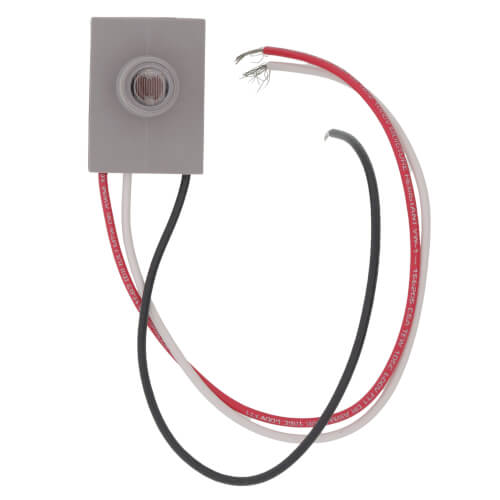

K4021C | Button Thermal Photocontrol, 120V

These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.

Features:

• Mechanical bimetal switch with Cadmium Sulfide photocell
• Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
• Delay feature prevents unwanted OFF switching
• 3/8"-18 NPSM, 3/4" long stem with locking nut and washer gasket

Applications:

• Parking Lot Lighting
• Landscape Lighting
• Exterior Lighting
• Street Lighting
• Pedestrian Pathway Lighting

Specifications:

• Usage Environments Outdoor
• Photocontrol Type Thermal
• Expected Lifetime (Years) 5
• Expected Lifetime (Operations) 3650
• Application Compatibilities HID; Fluorescent; Incandescent
• Photocontrol Style Button
• Photocontrol Sensor Location Front
• Sensor Time Delay 30 sec to 90 sec
• Photocell Type Cadmium Sulfide
• Photo Control Switch Type Mechanical Bimetal
• Fail Mode ON
• Activation On 1 to 5 fc
• Activation Off 3 to 15 fc
• Wire Lead Length (in) 9
• Wire Size Max #18 AWG
• Cover Color Gray
• Housing Material Polycarbonate
• Magnetic Ballast Range(s) 8.3 A, 1000 VA
• Tungsten Range(s) 15 A, 1800 W
• Wiring Option Wire leads
• Input Voltage Range(s) 120 VAC, 50/60 Hz
• UL Certification UL
• CSA Certification cCSAus
• Other Certifications and Compatibilities CA Title 20
