The F261 Series Flow Switches respond to
fluid flow in lines carrying water, ethylene
glycol, or other nonhazardous fluids. These
models also work in applications with
swimming pool water and lubricating oils.
F261 Series Standard Flow Switches use a
variety of paddle sizes to respond to fluid flow
rates in applications with pipe sizes greater
than 1 inch trade size.
Features and Benefits
- Type 4 (NEMA)
enclosure allows use in indoor or outdoor
- Viton® diaphragms allow use in fluid lines
carrying chlorinated water, treated water,
or other nonhazardous fluids
- Maximum fluid pressure of 290 psig
(20 bar) permits use in a wide range of
pressure flow conditions.

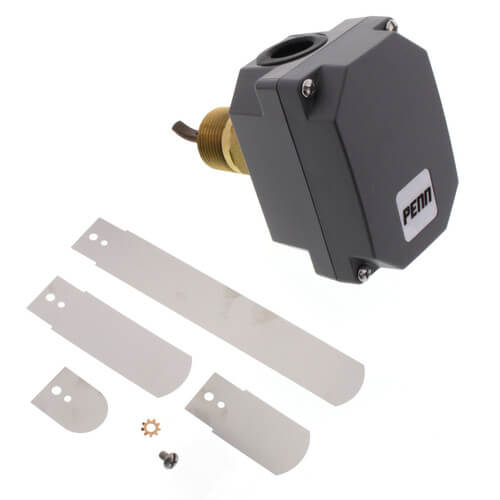

Standard model flow switch with Type 4 (NEMA) enclosure; 1 in., 2 in., 3 in., and 6 in. stainless steel paddles, lock-tooth washer,
and stainless steel paddle screw supplied uninstalled
