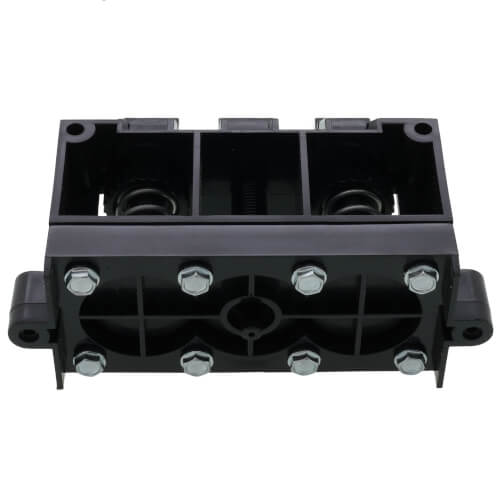

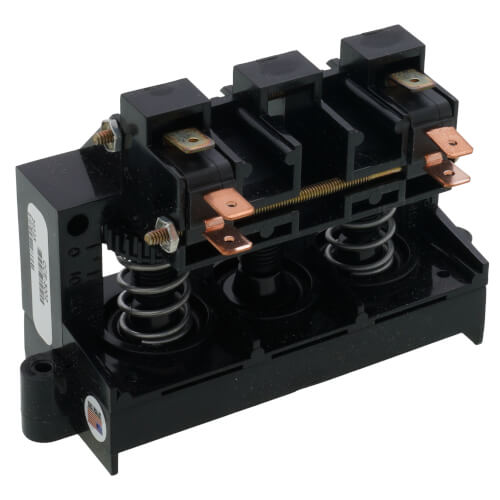

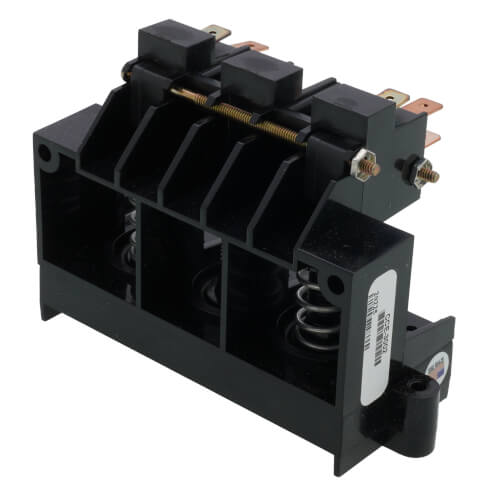

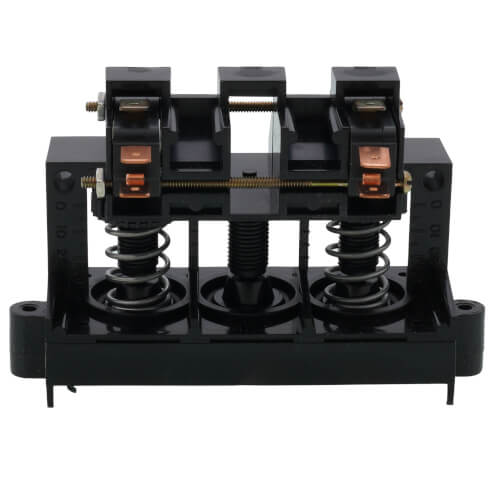

2 Stage SPDT Electric Pneumatic Relay
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$113.19 each
In Stock
Get 2 Wed, Jul 8
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v, 240v, 277v
40°F to 150°F
2
30 MAX PSI
Description
–
The CCE-3002 is a two-stage pneumatic-electric
relay. These relays are designed for applications
where a single pneumatic air signal requires
two or three predetermined air pressure settings,
each actuating its own electric switch.
These relays are UL recognized. Their electrical ratings
make them ideal for applications such as starting
fan induction terminals or controlling one, two,
or three stages of electric heating or refrigeration.
Application
The CCE-3000 series relays are ideal for starting fan induction terminals or controlling one, two, or three stages of electric heating or refrigeration.
Features
Application
The CCE-3000 series relays are ideal for starting fan induction terminals or controlling one, two, or three stages of electric heating or refrigeration.
Features
- Dual inputs
- RemChoice of one, two, or three stage units.
- SPDT switching on each stage.
- Electrical rating of 25 amps each switch (noninductive) @ 120/240/277 VAC, 1 HP @ 125 VAC, 2 HP @ 250 VAC, 750 VA pilot duty
- Fixed differential, 1 to 2 psi nominal (7 to 14 kPa)
- Setpoint range, 2 to 20 psig (14 to 138 kPa)
- Models are not position sensitive and may be mounted on surfaces or in bulkheads.
- UL recognized.
Specs
–
| Voltage: | 120v 240v 277v |
|---|---|
| Switch: | SPDT |
| Setpoint Range: | 2 to 20 psi |
| Stages: | 2 |
| Max Pressure (PSI): | 30 |
| Temperature Range (F): | 40°F to 150°F |
