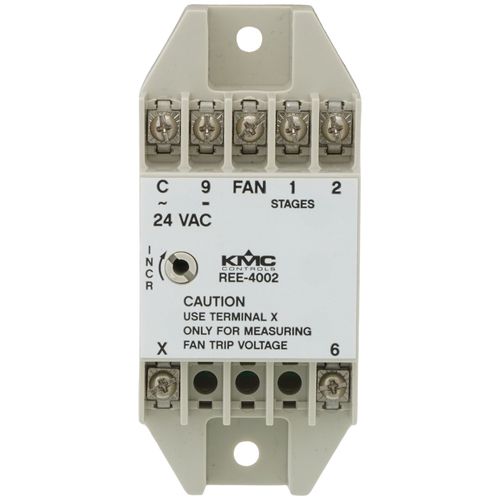

2-Stage Electric Reheat with 1-Stage Fan Box Relay Module
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$71.19 each
In Stock
Get 3 Wed, Jul 8
Order by today, receive Wednesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Beige
2 Heat/1 Fan
Description
–
2-Stage Electric Reheat with 1-Stage Fan Box Relay Module
The KMC REE-4002 relay module is designed primarily for use with VAV fan powered induction boxes. When used in conjunction with a direct acting CTE series room thermostat, the unit mounted fan and two stages of reheat can be controlled.
Each output circuit is capable of handling contactors of up to 10 VA @ 24 VAC. The “FAN” output circuit may be adjusted to start the unit fan at an air flow setting of 0 to 3,000 FPM. The two reheat circuits are factory set to sequentially actuate after the fan starts if the room temperature continues to fall.
Using the REE-4002 allows full adjustment of the unit fan starting point so that optimum use can be made of the warm air in the return air plenum before actuating reheat coils.
Features:
Note: Image may not be actual representation of item.
The KMC REE-4002 relay module is designed primarily for use with VAV fan powered induction boxes. When used in conjunction with a direct acting CTE series room thermostat, the unit mounted fan and two stages of reheat can be controlled.
Each output circuit is capable of handling contactors of up to 10 VA @ 24 VAC. The “FAN” output circuit may be adjusted to start the unit fan at an air flow setting of 0 to 3,000 FPM. The two reheat circuits are factory set to sequentially actuate after the fan starts if the room temperature continues to fall.
Using the REE-4002 allows full adjustment of the unit fan starting point so that optimum use can be made of the warm air in the return air plenum before actuating reheat coils.
Features:
- Simple installation
- Controls unit fan and two stages of reheat
- Each triac output capable of handling contactors of up to 10 VA @ 24 VAC
- Each reheat stage set to sequentially actuate after the fan starts
- “FAN” output adjustable (via the pot and a voltmeter) to start the unit fan at an airflow setting of 0 to 3,000 fpm
Note: Image may not be actual representation of item.
Specs
–
| Product Type: | Relay |
|---|---|
| Supply Voltage: | 24 VAC |
| Wire Size: | 14-22 AWG |
| Color: | Beige |
| Enclosure Type: | Flame Retardant Plastic |
| Operating Temp Range: | 40° to 120°F |
| Stages: | 2 Heat/1 Fan |
| Setpoint: | 2-6 VDC |
