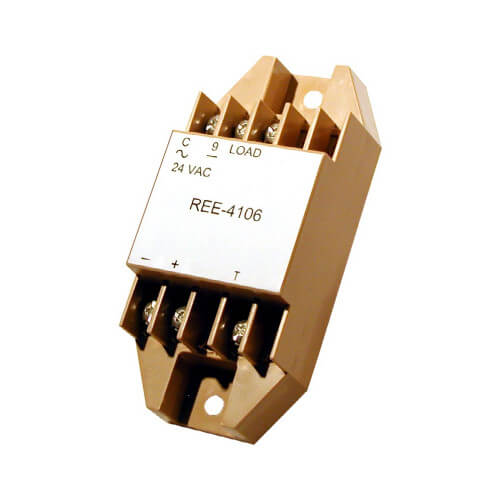

Proportional Reheat Relay Module for Normally Closed Valves with Thermostat Supply
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$73.03 each
Backorder
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Beige
Description
–
Proportional Reheat Relay Module for Normally Closed Valves with Thermostat Supply
The KMC REE-4106 relay module is designed primarily for the proportional control of electric hot water valves on VAV terminal units in HVAC systems.
The percent on-time of the electric hot water valve varies in direct proportion to the CTE series room thermostat signal. As the thermostat signal increases, the percent on-time of the electric hot water valve increases.
The REE-4106 must be used in conjunction with VEP series 2-way and 3-way hot water valves. Up to three VEP valves may be powered from an individual REE-4106.
Each module contains a built-in 9.1 VDC power supply which can be used to power any CTE room thermostat (except CTE-5100 Series) when a VAV box flow controller is not used.
Features:
Note: Image may not be actual representation of item.
The KMC REE-4106 relay module is designed primarily for the proportional control of electric hot water valves on VAV terminal units in HVAC systems.
The percent on-time of the electric hot water valve varies in direct proportion to the CTE series room thermostat signal. As the thermostat signal increases, the percent on-time of the electric hot water valve increases.
The REE-4106 must be used in conjunction with VEP series 2-way and 3-way hot water valves. Up to three VEP valves may be powered from an individual REE-4106.
Each module contains a built-in 9.1 VDC power supply which can be used to power any CTE room thermostat (except CTE-5100 Series) when a VAV box flow controller is not used.
Features:
- Valve percent on-time varies in direct proportion to the thermostat signal.
- Built-in 9.1 VDC power supply available to power applicable thermostats
- Simple installation
Note: Image may not be actual representation of item.
Specs
–
| Product Type: | Relay |
|---|---|
| Supply Voltage: | 24 VAC |
| Wire Size: | 14-22 AWG |
| Color: | Beige |
| Enclosure Type: | Flame Retardant Plastic |
| Operating Temp Range: | 40° to 120°F |
