Clamp Meter for AC with Temp

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.

Product Features

• Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
• Non-contact voltage tester integrated into the clamp jaw
• Backlit LCD for ease of viewing in low light
• Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
• Measures temperature with a K-Type thermocouple probe
• Auto-Range, Hold, Data Hold, and Max value
• Auto-power off after 10 minutes to conserve battery life

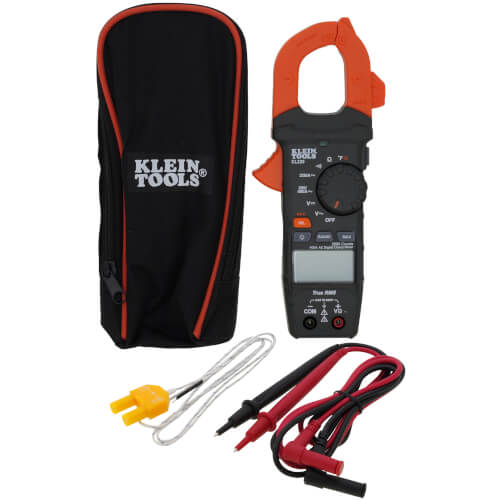

• Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
• Low battery indicator and easily accessible battery compartment
• Built to withstand a 6.6 ft. (2 m) drop
• CAT III 600V, Class 2, Double insulation safety rating
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Product Specifications

• Type: Auto Ranging TRMS Clamp with Temperature
• Application: Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple
• Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
• Material: ABS/Electronics
• Batteries: 3 x AAA
• Auto-Power Off: Yes
• Jaw Size: 1.6'' (4.1 cm)
• Drop Protection: 6.6' (2 m)
• Display: 2000 Count Backlit LCD
• Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
• Voltage: 600 V AC/DC
• Current: 400 A AC
• Ohms (Resistance): 20M
• AC Voltage: 600 V
• DC Voltage: 600 V
• DC Polarity Indicator: Yes
• Temperature Range: -40° - 1832°F (-40° - 1000°C)
• Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
• Included: Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries
