HVAC Clamp Meter for AC

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.

Product Features

• Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
• Non-contact voltage tester integrated into the clamp jaw
• Backlit LCD for ease of viewing in low light
• Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
• Measures temperature with a K-Type thermocouple probe
• Auto-Range, Data Hold, and Max/Min value
• Auto-power off after 10 minutes to conserve battery life
• Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
• Low battery indicator and easily accessible battery compartment
• Built to withstand a 6.6-Foot (2 m) drop
• CAT III 600V, Class 2, Double insulation safety rating
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Product Specifications

• Type: HVAC TRMS Clamp
• Application: Measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamp, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
• Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; HVAC Applications
• Material: ABS/Electronics
• Batteries: 3 x AAA
• Auto-Power Off: Yes
• Jaw Size: 1.6'' (4.1 cm)
• Drop Protection: 6.6' (2 m)
• Display: 4000 Count Backlit LCD
• Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
• Voltage: 600 V AC/DC
• Frequency: 10 Hz -1 MHz
• Current: 400 A AC
• Capacitance: 4000 µF
• Ohms (Resistance): 40MO
• AC Voltage: 600 V
• DC Voltage: 600 V
• DC Polarity Indicator: Yes
• DC Micro-Amp: 200 Micro-Amp
• Temperature Range: -40° - 1832°F (-40° - 1000°C)
• Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified

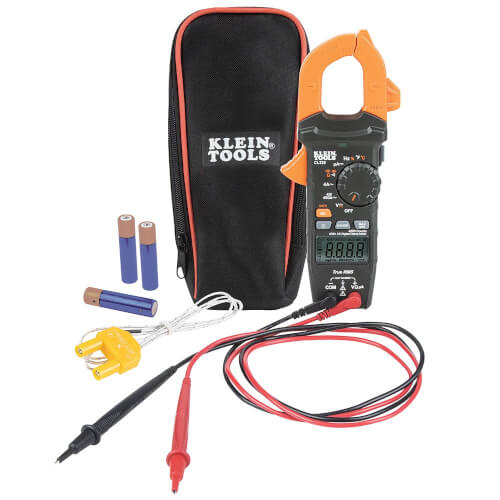

• Included: Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries
• Overall Length: 8.45'' (21.5 cm)
• Overall Height: 1.5'' (3.8 cm)
• Overall Width: 3.5'' (8.9 cm)
• Weight: 11 oz (314 g)
