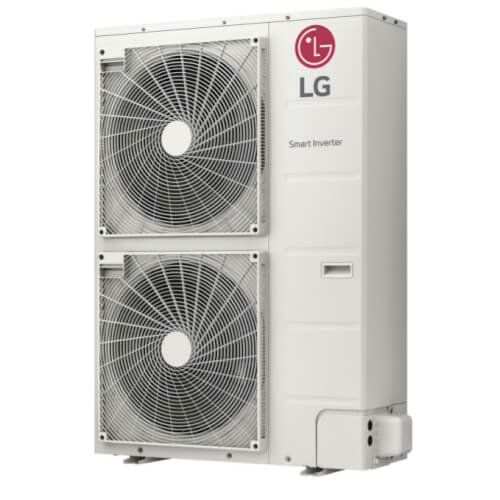

36,000 BTU, R-410A, Multi F MAX Inverter Heat Pump w/ LGRED, 5 Zone (Outdoor Unit)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$3,992.73 each
In Stock
Get 1 Wed, Jul 8 - Fri, Jul 10
MANUALS (6)
This item replaces: LMU360HHV
Lift Gate
–
This product weighs 242.51 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
36000 BTUs
45000 BTUs
3/8"
3/4" SL
5
R-410A
Description
–
Rebates:
This product qualifies for a federal tax rebate of up to $2,000. Federal Rebate click for more info
In addition to the federal rebate, you may also be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about local rebate programs that may apply to you. LG Rebate Center
Note: This unit requires the use of either 1 or 2 branch distribution boxes to connect with compatible indoor units. If using 2 Branch distribution boxes, the Y Branch kit PMBL5620 is also required.
Product Features:
This product qualifies for a federal tax rebate of up to $2,000. Federal Rebate click for more info
In addition to the federal rebate, you may also be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about local rebate programs that may apply to you. LG Rebate Center
Note: This unit requires the use of either 1 or 2 branch distribution boxes to connect with compatible indoor units. If using 2 Branch distribution boxes, the Y Branch kit PMBL5620 is also required.
Product Features:
- R1 Scroll (Variable Speed) Compressor
- Auto operation
- Auto restart
- Self diagnosis
- Defrost / Deicing
- Low ambient cooling down to 14°F
- Soft start
- Restart delay (3 minutes)
- Factory installed Drain Pan Heater
- Nominal Cooling Capacity (Min.-Rated-Max., Btu/h): 10,800~36,000~47,000
- Nominal Heating Capacity (Min.-Rated-Max., Btu/h): 12,420~45,000~50,000
- Refrigerant Charge (lbs): 11.46
- Liquid Line (OD) : 3/8" (1 Each)
- Vapor Line (OD): 3/4" (1 Each)
- Max Total Piping² : 475.7 ft
- Max ODU to IDU Piping: 32.8 / 229.6
- Piping Length (no add'l refrigerant, ft): 180.4 ft.
- Max Elevation between ODU and IDU: 98.4 ft.
- Max Elevation between IDU and IDU: 49.2 ft
- Refrigerant Type: R410A
- Refrigerant Control: EEV
- Sound Pressure (Cool/Heat) +/-3 dB(A) 53/55
- Net Unit Weight (lbs) : 218
- Shipping Weight (lbs) : 243
- Heat Exchanger Coating GoldFin
- Min Number of Indoor Units: 2
- Max Number of Indoor Units: 5
Specs
–
| Product Type: | Outdoor Unit |
|---|---|
| Cooling Capacity (BTU): | 36000 |
| Heating Capacity (BTU): | 45000 |
| Application: | Cooling |
| Number of Zones: | 5 |
| Refrigerant Type: | R-410A |
| Modes: | Fan Cooling Heating |
| Voltage: | 208/230V |
| Suction Line: | 3/4" |
| Liquid Line: | 3/8" |
| Energy Star Rated: | Yes |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
2.6 out of 5 reviews
50% would recommend this product
5 star
20%
4 star
20%
3 star
0%
2 star
20%
1 star
40%
Showing 1-5 of 5 reviews
Good So Far
Unit was installed last week & working great. As another review noted, this is just one piece of a system you need including a branch box. Very efficient & quiet, but do the research or hire a professional.
WorkEngr
Maryland
10 months ago
Was this review helpful to you?
Be advised...
There's no notice on this unit (other than in the title itself), that this is not compatible with new air handler units given the change in refrigerant. The air handlers have notices prior to purchase, this unit does NOT. Don't get caught out!
Two Too Many Heat Pumps
Where It's Too Hot
12 months ago
Verified Buyer
Was this review helpful to you?
LGRED Heating
Unit worked great over the summer cooling , unit is working great this winter so far we had -1 the other night and it kept the house at a warm 73 with no trouble , when the unit is in heating the fans spin so fast you can hear the cabinet rattle , to a bit of adjusting to do fix
Tony
Keene
1 years ago
Was this review helpful to you?
Poor quality, buy Mitsubishi!
Keep showing CH29, failed to heat in 28F even.
h
NY
2 years ago
Was this review helpful to you?
Poor quality, buy Mitsubishi!
First time to write a review. Outside is 26F, it can't run continually at all! Shows Error "CH 29" after run a while.
How dare it say heat function can run as low as -13F!
Hai
NY
2 years ago
Was this review helpful to you?
