PMBD3641 has been discontinued
Discontinued April 2, 2026
This product was discontinued by the manufacturer.
MANUALS (1)
Suggested Alternative:
4-Port Branch Distribution Box w/ Socket Adapters Req. for 36,000 BTU Indoor Unit for Multi F MAX & Multi F MAX w/ LGRED Outdoor Units
Product Highlights
–
208/230V
0.16 Amps
Description
–
Note: This item is for R-410A units only, and is not compatible with R-32 or R-454B units.
Features:
- Distributes refrigerant to indoor units
- Internal components are insulated
- Flare joints provided for easy installation
- Compact design

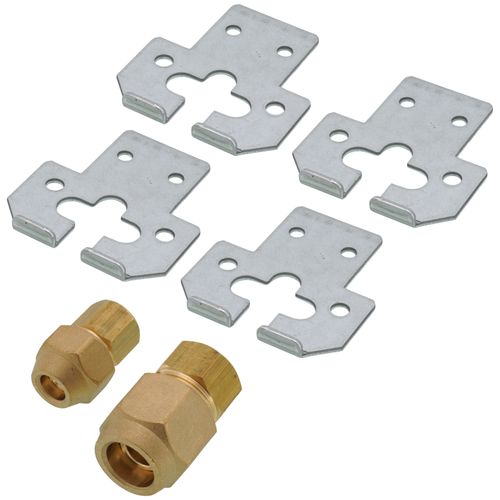

- One integral 36k unit adapter
Piping
- Piping Connection to Outdoor Unit
- Liquid Line (OD) : 3/8"
- Vapor Line (OD) : 3/4"
- Piping Connection to Indoor Unit
- Liquid Line (OD) : 1/4" (A-C), 3/8" (D)
- Vapor Line (OD) : 3/8" (A-C), 5/8" (D)
Performance:
- Max Nominal Port Capacity Btu/h (each port: A-C) : 24,000
- Max Nominal Port Capacity Btu/h (each port: D) : 36,000
- Max Nominal Unit Capacity Btu/h (sum of ports) : 73,000
- Power Input (W): 32
Specs
–
| Product Type: | Distribution Unit |
|---|---|
| Voltage: | 208/230V |
| Hertz: | 60 |
| Phase: | 1 |
| Amperage: | 0.16 |
