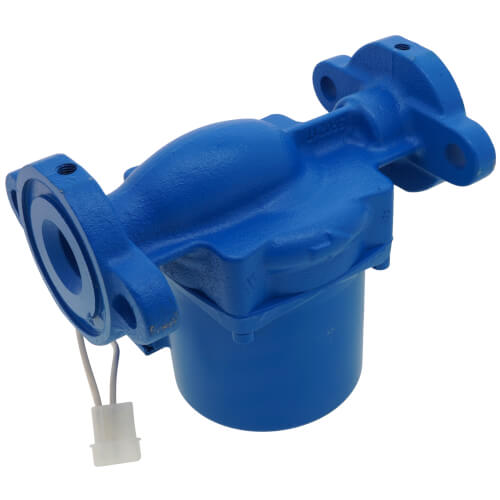

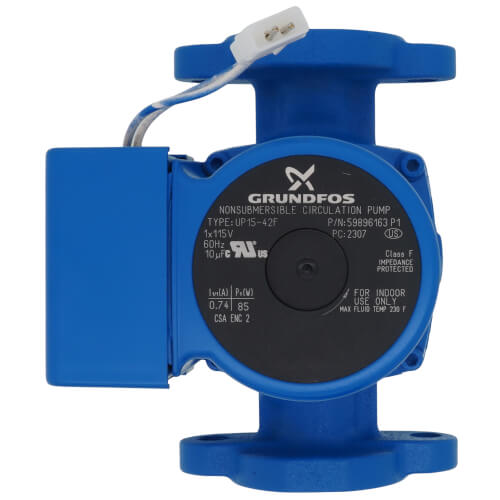

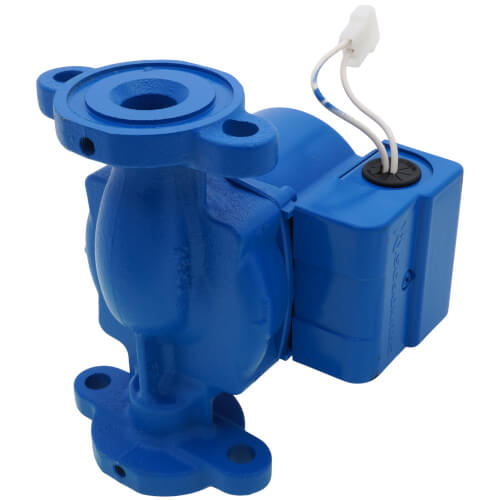

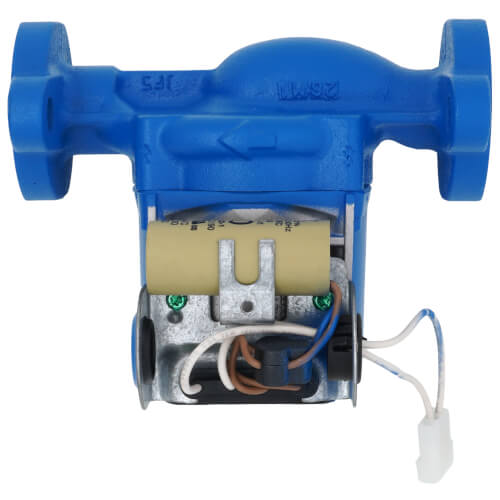

UP15-42F, Circulator Pump, 1/25 HP, 115 volt, 2400-005
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/25 HP
Flanged x Flanged Connection
17 MAX GPM
145 MAX PSI
Cast Iron
Description
–
Grundfos UP15-42F Circulator Pump (59896155) is a 1/25HP cast iron circulator designed for use in closed loop heating applications, such as radiant heating, baseboards, fan coils, etc.
Features:
Features:
- Built-in motor protection for longer life and better performance.
- Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types.
- Whisper-quiet operation for sound sensitive installations.
- Includes (2) Gaskets (O-rings)
Specs
–
| Material: | Cast Iron |
|---|---|
| Amperage: | 0.74 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 145 |
| Type: | 1-Speed Pump |
| Horse Power: | 1/25 |
| Flow Range (GPM): | 0-17 |
| Max Flow (GPM): | 17 |
| Max Head (Ft): | 15 |
| Head Range (ft.): | 0-15 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 2590 |
| Temperature Range (F): | 36°F - 230°F |
| Connection Size: | 1-1/2" 3/4" 1-1/4" 1" |
| Connection Type: | Flanged x Flanged |
