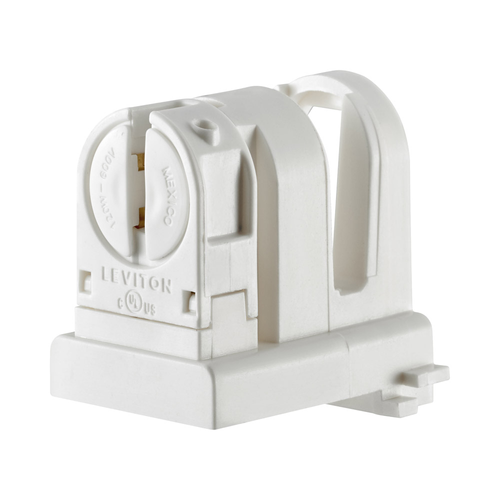

Medium To Miniature Base, T5 Bi-pin, Fluorescent Lampholder, Long T-8 To T-5 Adapter (White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$5.29 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1 Year Warranty
Thermoplastic
White
Description
–
Features
Specifications
- Available shunted and non-shunted
- 4-position, positive-stop lamp-lock socket makes it simple for end users to relamp in service
- Long and Short lengths available
- Simple, cost-effective solution enables OEM's to incorporate miniature bi-pin T-5 lamps into existing T-8 fixture design
- Fits existing slide-on T-8 lampholder cutouts and compensates for variations in T-5 lamp lengths
- No change in socket bar tooling required
Specifications
- Color: White
- RoHS Compliant: FALSE
- CSA Certified: File LR-1863
- Panel Thickness: 20 Ga. Panel
- Lamp Type: T5
- Style Name: Long T-8 to T-5 Adapter
- Mounting Type: Slide-On
- Body Material: Thermoplastic
- Country of Origin: Mexico
- Voltage: 600 Volt
- Lamp Contacts: Bi-Pin
- NOM Certified: 57
- Lamp Base: Medium to Miniature
- Light Type: Fluorescent
- Warranty: 1 Year Limited
- Rated Wattage: 660W
- Availability: OEM Only
- Wire Strip Length: 3/8 Inch
- Contact Material: Copper-Alloy
- Standards and Certifications: UL/CSA/NOM
- Lampholder Type: Linear
- Contact Type: Lamp-Lock
- Termination: Quickwire 18AWG Solid or Str. Tinned
- UL Listed: File E5833
Specs
–
| Warranty: | 1 Year |
|---|---|
| Terminations: | Quickwire 18AWG Solid Str. Tinned |
| Material: | Thermoplastic |
| Country of Origin: | Mexico |
| Color: | White |
