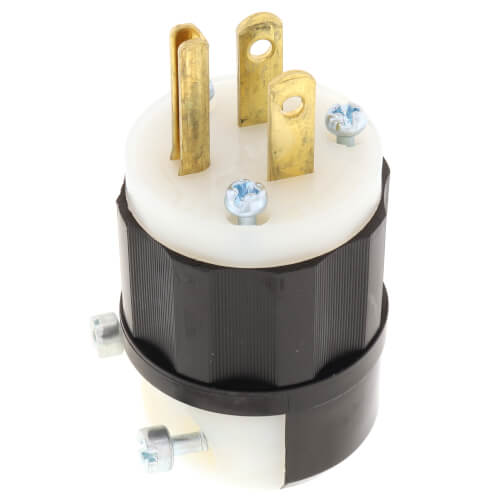

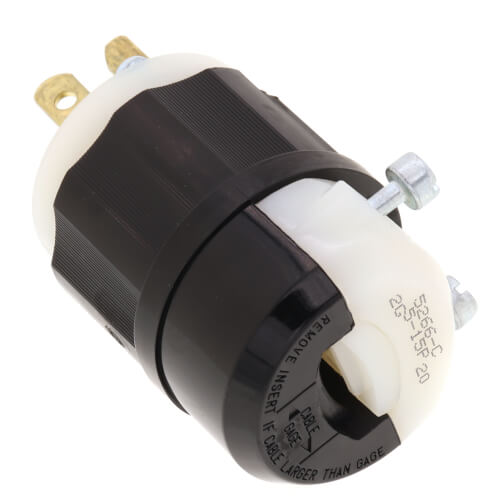

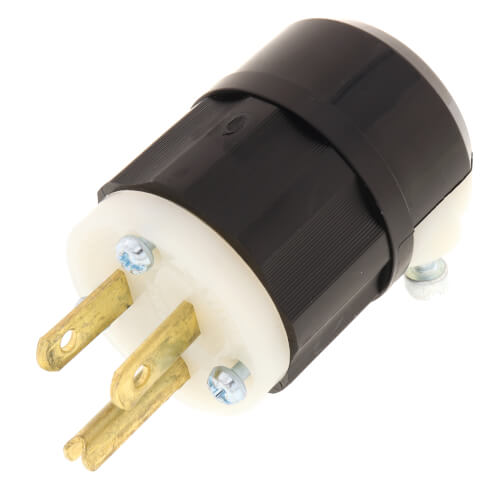

Industrial Grade, Straight Blade Plug 15A, NEMA 5-15P - Black/White (125V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$6.67 each
BOX UP & SAVE 2%
$65.50 box of 10
$6.55 each
In Stock
Get 326 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
125v
Nylon
White, Black
15 Amps
Industrial
Description
–
Leviton Black & White® 2-Pole 3-Wire Polarized grounding straight blade plug in black/white color features nylon body, wire module, cord-clamp and clamp insert that resists impact. It has corrosion-resistant thermoplastic back cover, durable brass blade/contacts/terminal screws and zinc-plated steel assembly screws. It is HB/UL94 flammability rated to withstand hazardous environmental conditions.
Features:
Specifications:
Features:
- Temperature rises max to 30C after 250 cycles OL at 200 percent rated current
- Dielectric voltage withstands 2000V per UL498
- Current interrupting is certified for current interrupting at full rated current
- Operating temperature is from -40C to 60C
Specifications:
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Accom.: 18-10 AWG
- Product ID: Ratings and National electrical Manufacturers Association I.D. permanently marked on device
- Cord Range: .245 - .700
- National electrical Manufacturers Association: 5-15P
- Color: Black-White
- National electrical Manufacturers Association: WD-6
- ANSI: C-73
- UL 498: File E13399
- UL Fed Spec WC-596: File E13393
- CSA C22.2 No. 42: File LR-406
- NOM: 057
- Warranty: Lifetime Warranty
Specs
–
| Voltage: | 125v |
|---|---|
| Material: | Nylon |
| Color: | White Black |
| AWG: | 18 10 |
| NEMA Rating: | 5-15P |
| Amperage: | 15 |
| Type: | Straight Blade Plug |
| Poles: | 2 |
| Grade: | Industrial |
