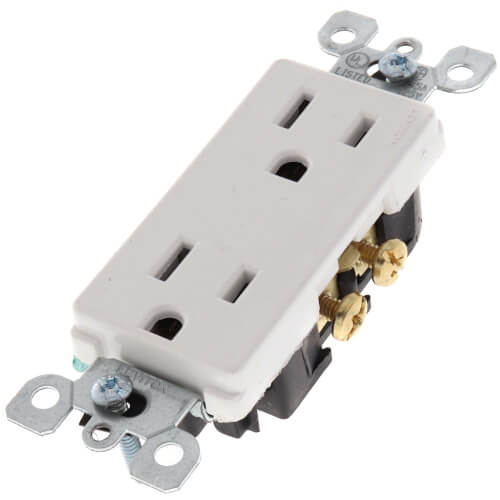

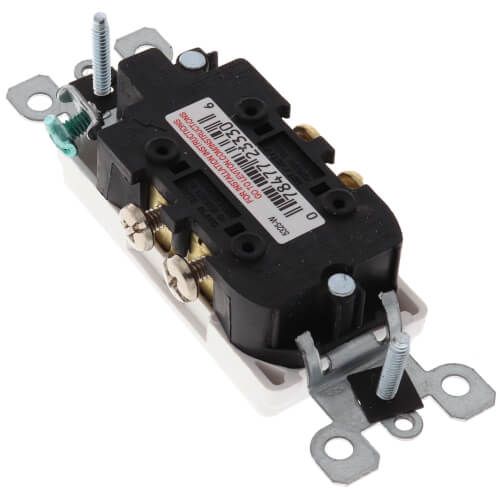

Decora Duplex Receptacle w/ Quickwire - White (5-15R, 15 Amp, 125V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

15 Amp, 125 Volt, NEMA 5-15R, 2-Pole, 3-Wire, Decora Duplex Receptacle, Straight Blade, Residential Grade, Grounding, Quickwire Push-In & Side Wired, Steel Strap - White

Leviton’s comprehensive Residential Grade Receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.

Features:

• Amperage: 15 A
• Body Material: Thermoplastic
• Color: White
• Face Material: Thermoplastic
• NEMA: 5-15R
• Pole: 2
• Standards and Certifications: UL/CSA
• Strap Material: Steel
• Termination: Quickwire Push-In & Side
• Type: Duplex Receptacle
• Terminal screws accepts up to No. 12 AWG copper-clad wire
• Quickwire push-in terminals accept No. 14 AWG copper wire only
• Double-wipe power contacts for reliable conductivity and plug retention
• Heavy-gauge zinc-plated steel mounting strap
• Voltage: 125 VAC
• Wire: 3
• Warranty: 2-Year Limited

Specifications:

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C
• Grounding Screw: Steel 8-32
• Terminal Screws: Brass
