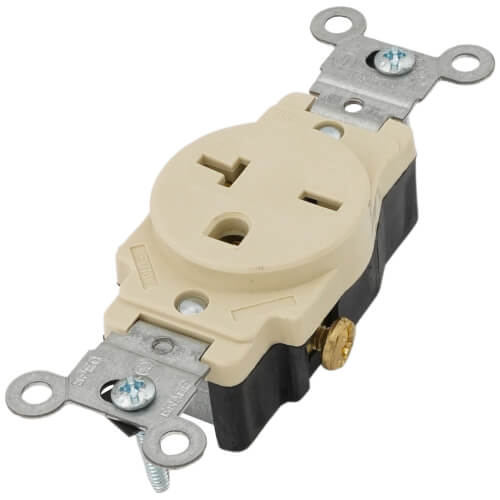

Narrow Body Single Receptacle, 20A, NEMA 6-20R - Ivory (250V)

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.

Leviton Straight blade single receptacle in ivory color features thermoplastic nylon body and face. Commercial grade receptacle has a zinc-plated steel yoke and works at full rated current. It has a current rating of 20 Amps, voltage rating of 250 Volts and power rating of 2 hp. The 2-Pole grounding receptacle has three-wire circuitry and comes with 0.031-Inch thick brass double wipe line contacts. It can withstand up to 2000 Volts and measures 1.380 Inch x 4.060 Inch.

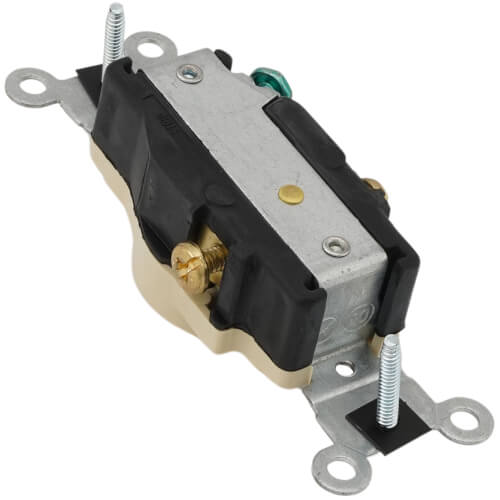

Receptacle has side wired connection for convenience and can accommodate a wire of size 14 - 10 AWG and has brass-hot, green-ground and white neutral terminal for easy identification. It has brass 8-32 terminal screws, brass 8-32 grounding screw and 6-20R NEMA configuration. It has a rated V-2 flammability and operates at -40 to 60 deg C temperature. Receptacle is UL 498 listed/CSA certified and meets NEMA/NOM/ANSI standards.

Product Details:

• Dimension: 1.380 Inch Width x 4.060 Inch Height
• Ratings are permanently marked on device
• Triple-wipe contacts for maximum conductivity and plug retention
• Heavy-gauge, rust-resistant steel mounting strap
• Shallow design for maximum wiring room in box
• Large-head terminal screw, backed out and staked, accept No. 10 copper or copper-clad wire
• Convenient washer-type break-off plaster ears for best flush alignment
• Impact and rust-resistant

Features:

• Manufactured to withstand the harsh conditions typically associated with industrial environments
• Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc

Specifications:

• Grounding: Grounding
• Amperage: 20 Amp
• Voltage: 125 Volt
• NEMA: 6-20R
• Pole: 2
• Wire: 3
• Dielectric Voltage: Withstands 2000V per UL498
• Current Limiting: Full Rated Current
• Termination: Side
• Face Material: Nylon
• Body Material: Nylon
• Strap Material: Steel
• Color: Ivory
