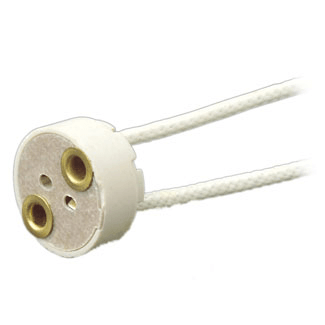

Incandescent Lampholder, Miniature Bi-Pin Base - White (750W)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$6.15 each
Backorder
Get it Wed, Jul 8 - Wed, Aug 5
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
750 Watts
White
Description
–
Miniature Bi-Pin Base, G4, G6.35, GY6.35, GX5.3 MR16, GZ4 MR11, Halogen, Incandescent, Ceramic Body Lampholder, Mounting Holes, Side Wired, - White
- WARNING: Miniature Quartz Halogen Lamps operate under pressure and high temperatures. To prevent socket damage, the design of the fixture and its application must be carefully considered. For Leviton warranties to apply to this product, lamp wattage, current and beam spread must be controlled to insure that the following temperature limits are never exceeded.
- At contacts within socket - 225C
- Socket lead wires - 200C
- NOTE: Maximum rating of 250C available when appropriately rated leads are used.
Features:- Mechanical Specifications
- Max. Amperage: 12 Amp
- Max. Voltage: 250 Volt
- Max. Wattage Rating: 750W
- Termination: 12-Inch 18AWG SEW-1 200C Glass Braided
- Product Features
- ANSI Lamp Type: G4, G6.35, GY6.35, GX5.3 MR16, GZ4 MR11
- Access: Side Wired
- Availability: OEM Only
- Body Material: Ceramic Body
- Color: White
- Contact Material: Nickel-Plated Copper-Alloy
- Cover Material: Mica
- Lamp Base: Miniature
- Lamp Contacts: Bi-Pin
- Lamp Socket Base: Miniature Bi-Pin
- Light Type: Quartz Halogen
- Mounting Type: Mounting Holes
- Standards and Certifications: UL/CSA
- Termination: 12-Inch 18AWG SEW-1 200C Glass Braided
- Warranty: 1 Year Limited
- Material Specifications
- ANSI Lamp Type: G4, G6.35, GY6.35, GX5.3 MR16, GZ4 MR11
- Access: Side Wired
- Lamp Socket Base: Miniature Bi-Pin
- Shell Material: Ceramic
- Termination: 12-Inch 18AWG SEW-1 200C Glass Braided
- Wire Strip Length: 1/2 Inch
- Standards and Certifications
- CSA Certified: File LR-1863
- UL Recognized: Component E13405
- Socket lead wires - 200C
- At contacts within socket - 225C
Specs
–
| Wattage: | 750 |
|---|---|
| Color: | White |
