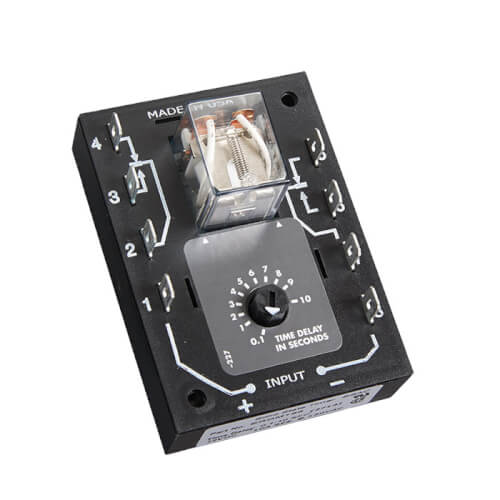

DPDT 30 sec. Delay-on-Make Fixed Time Delay (120V)

The ERDM Series are a combination of digital electronics and a reliable electromechanical relay. These devices offer a DPDT relay output for relay logic circuits, and isolation of input to output voltages. Cost effective for OEM applications, such as random starting, sequencing ON, switch de-bouncing, anti-short cycling, and other common delay-on-make applications.
Operation (Delay-on-Make) Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

Specifications:

• Input Voltage (V): 120VAC
• Input Tolerance (%): -20% - 10%
• Input AC Line Frequency (Hz): 50/60Hz
• Output Type: Isolated relay contacts
• Output Form: DPDT
• Output Load Rating (VA): 10A resistive @ 120/240VAC and 28VDC; 1/3hp @ 120/240VAC
• Time Delay Type: Digital integrated circuitry
• Time Delay Range: 30s fixed
• Time Delay Tolerance (%): 10%
• Recycle Time (ms): 150ms
• Adjustment Type: Fixed
• Repeat Accuracy (%): 0.5%
• Setpoint vs Ambient Temperature and Operating Voltage (%): 2%
• Insulation Resistance: 100 M
• Isolation Voltage (V): 1500V RMS input to output
• Polarity: DC units are reverse polarity protected
• Life: Mechanical - 1 x 107; Full load - 1 x 106
• Termination Type: 0.25 in. (6.35mm) male quick connect terminals
• Mounting Method: Surface mount with two #6 (M3.5 x 0.6) screws
• Operating Temperature: -40° to 65°C (-40°F to 149°F)
• Storage Temperature (F/C): -40° to 85°C (-40°F to 185°F)
• Dimensions: 3.50 x 2.50 x 1.75 in. (88.9 x 63.5 x 44.5 mm)
