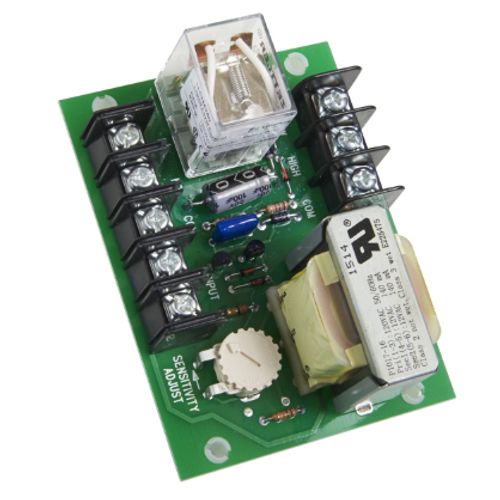

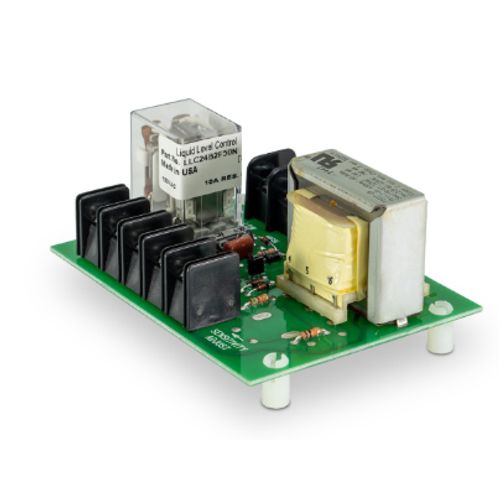

Liquid Level Control, LLC24B2F50N
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$113.39 each
Out of Stock
Get it Wed, Jul 22 - Wed, Jul 29
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
Description
–
LLC24B2F50N is a dual-probe conductive liquid level control with ac input voltage of 120 and a fixed sensing resistance of 50 k0hm
Specifications:
- Input Voltage (V): 120 Vac
- Output Form: Isolated SPDT
- Termination Type: Terminal blocks for up to #14 AWG
- Dimensions: 4 H x 3 W x 2 D in. (101.6 x 76.2 x 50.8 mm)
- Control Type: Resistance sensing for high and low level detection of conductive liquids
- Input AC Line Frequency (Hz): 50 / 60
- Input Tolerance (%): -0.3
- Output Load Rating (VA): 10 A resistive @ 120/240 Vac and 28 Vdc; 1/3 hp @ 120/240 Vac
- Output Type: Electromechanical relay
- Sense Voltage: 12 Vac at probe terminals
- Isolation Voltage: - + 1500 Vrms between input; output; and probe
- Mounting Method: Surface mount to probe common with two or four #6 (M3.5 x 0.6) screws
- Operating Temperature Maximum Fahrenheit:131
- Operating Temperature Minimum Celsius: -20
- Operating Temperature Minimum Fahrenheit: -4
- Storage Temperature Maximum Celsius: 80
- Storage Temperature Maximum Fahrenheit: 176
- Storage Temperature Minimum Celsius: -40
- Storage Temperature Minimum Fahrenheit: -40
Specs
–
| Voltage: | 120v |
|---|---|
| Type: | Liquid Level Control |
