SPDT 3 to 300 sec. Delay-on-Break Time Delay (120V)

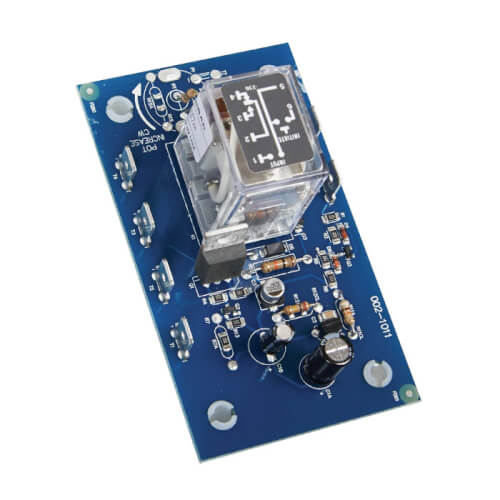

The ORB Series open PCB construction offers the user good economy without sacrificing performance and reliability. The output relay is available in isolated, 10A, DPDT or SPDT forms. The time delay may be ordered as factory fixed, onboard knob, or external adjustment. All connections are 0.25 in. (6.35 mm) male quick connect terminals.

Operation (Delay-on-Break)

Input voltage must be applied before and during timing. Upon closure of the initiate switch, the output relay energizes. The time delay begins when the initiate switch is opened (trailing edge triggered). The output remains energized during timing. At the end of the time delay, the output de-energizes. The output will energize if the initiate switch is closed when input voltage is applied.
Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the time delay and output.

Specifications:

• Input Voltage (V): 120VAC
• Input Tolerance (%): -20% - 10%
• Input AC Line Frequency (Hz): 50/60Hz
• Output Type: Electromechanical relay
• Output Form: Isolated SPDT or DPDT
• Output Load Rating (VA): 10A resistive @ 120/240VAC and 28VDC; 1/3hp @ 120/240VAC
• Time Delay Type: Analog circuitry
• Time Delay Range: 3 - 300s onboard adjustable
• Time Delay Tolerance (%): Guaranteed range
• Reset Time (ms): 50ms
• Initiate Time (ms): 70ms
• Repeat Accuracy (%): 2% or 20ms whichever is greater
• Setpoint vs Ambient Temperature and Operating Voltage (%): 10%
• Isolation Voltage (V): 1500V RMS input to output
• Life: Mechanical - 1 x 107; Electrical - 1 x 105
• Power Consumption: 2.25W
• Termination Type: 0.25 in. (6.35mm) male quick connect terminals
• Mounting Method: Surface mount with four #6 (M3.5 x 0.6) screw
• Operating Temperature: -20° to 65°C (-4°F to 149°F)
• Storage Temperature (F/C): -30° to 85°C (-22°F to 185°F)
