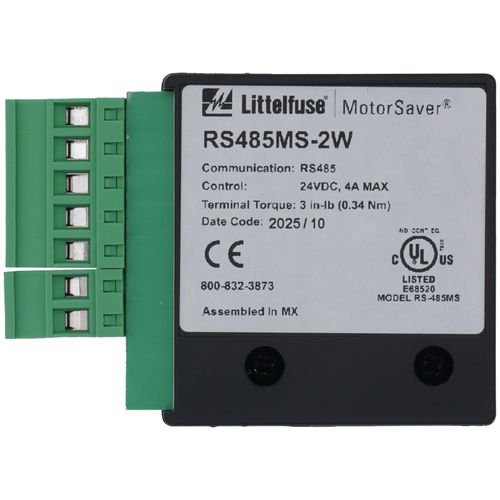

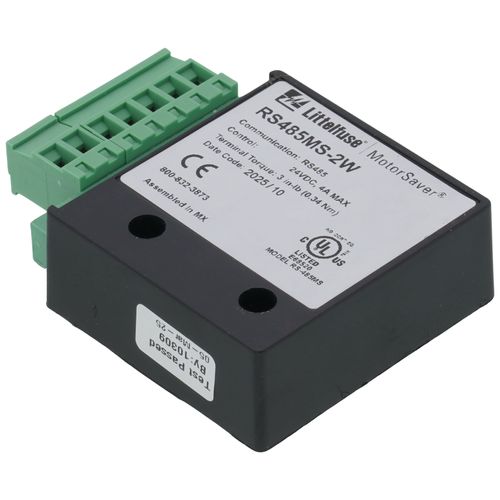

RS-485 Communication Module
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$176.45 each
In Stock
Get 5 Wed, Jul 8
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
The RS485MS-2W is required to enable the Modbus communications function on Model 77x-type products. This module is required when the RM-1000, RM-2000 or other Modbus capable device is used with 77x-type products.
Features:
Specifications:
Features:
- Optical isolation from line potentials
- Powered by the 77x product
- RS-485 compliant bus drive capability
- Remote reset input connection
- Power connection for the Model RM1000
Specifications:
- Surge Protection: Input Power: IEC 61000-4-5 Level 1; Inputs/Data Lines: IEC 61000-4-5 Level 2
- Protection Class: IP20
- Termination Type: Torque: 3in-lbs; Wire: 12-20AWG

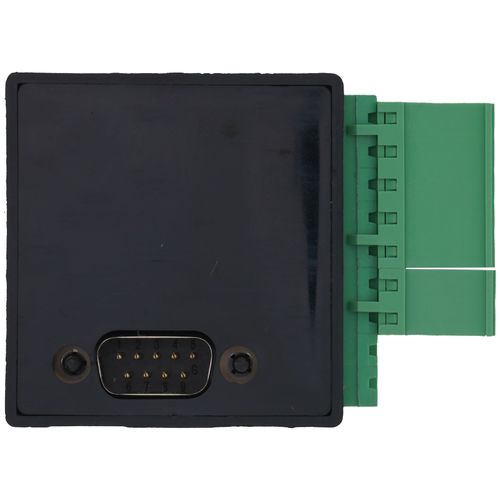

- Mounting Method: 9-pin D-Sub connector on the side of a 777-Series
- Operating Temperature: -20° to 50°C (-4° to 122°F)
- Humidity: 10-95% non-condensing per IEC 68-2-3
- Dimensions: 2.08 in H x 2.90 in W x 0.77 in D (52.8 x 73.7 x 19.6 mm)
Specs
–
| Product Type: | Communication Module |
|---|
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Essential Addition to Communicate with Motor Saver
Great little module to communicate with its Motor Saver. I successfully used this to integrate the SignalFire products with our Motor Savers via RS485 twisted pair. We now get alarms on our smart phones and can read and write registers (voltages, currents, operating status, latched failures, etc) without getting into the equipment panels
Greg
Driggs, ID
3 years ago
Verified Buyer
