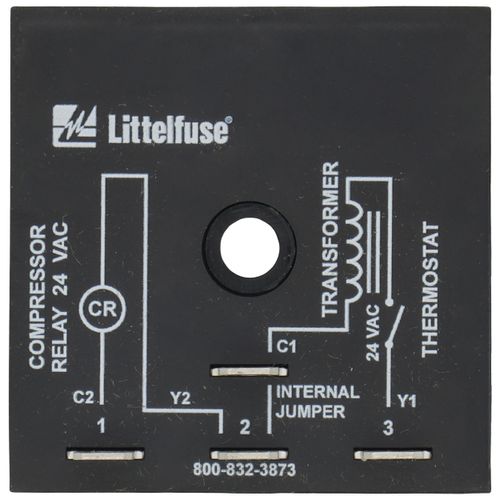

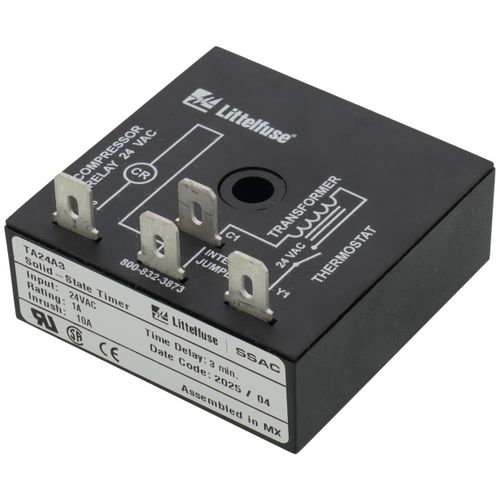

3 min. TA Series Lockout Timer (24V)

The TA Series prevents rapid recycling of a compressor. A lockout delay is started when the thermostat opens, or input voltage is lost. Eliminates tripped circuit breakers or blown fuses caused by a locked rotor during short cycling. The TA will not allow the compressor to start when the line voltage is low. Chatter of the compressor relay is eliminated. Because of the fast initiate time, bounce of the thermostat will not be transmitted to the compressor relay coil. A 30 second delay provides anti-reversing protection for scroll compressors.

Product Features

• Lockout delay: Prevents rapid cycling of compressor and eliminates nuisance service calls due to blown fuse or tripped breaker by locked rotor during short cycling
• Anti-reversing protection for scroll compressors: Extends life of equipment
• Brownout protection: Timer will not allow the compressor to start during low line voltage conditions
• Encapsulated Protects: against shock, vibration, and humidity
• solid state output: No moving parts to arc and wear out. Provides up to 100 million operations under typical conditions
