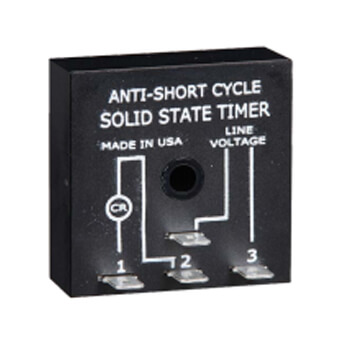

5 min. Lockout Timer, 1 sec. Delay-on-Make (120V)

The TL Series provides protection against short cycling of a compressor. At the end of each operation, or whenever power is lost, a lockout delay is initiated. This lockout delay prevents restarting of the compressor until the head pressure has equalized. Compressor relay chatter due to thermostat bounce is eliminated by use of optional one second delay-on-make. The TL Series should not be used with cooling anticipator resistors or solid-state switches. (See the TA Series).

Product Features

• Lockout delay: Prevents rapid cycling of compressor and eliminates nuisance service calls due to blown fuse or tripped breaker by locked rotor during short cycling.
• One second Delay-on-Make (models ending in T): Eliminates contactor chatter due to thermostat bounce
• Totally solid state and encapsulated:No moving parts to arc and wear out over time and encapsulated to protect against shock, vibration, and humidity
• 1A steady, 10A inrush, solid state output: Provides 100 million operations in typical conditions
