8-pin SPDT Universal Delay-on-Make Time Delay (19-264V)

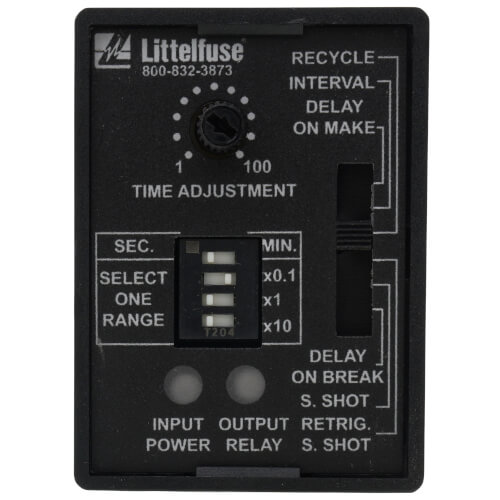

The TRU Series is a multifunction, knob adjustable, Universal Time Delay Relay. It includes six of the most popular timing functions selected by a slide switch. The time delay is knob adjustable and the time delay range is switch selectable. The repeat accuracy is + 0.1%. Both function and time range can be selected on the top face of the unit. In addition to multifunctioning and multiple time ranges, the TRU Series features universal input voltage; 19 to 264VAC and 19 to 30VDC and full 10A output relay. The TRU Series can directly replace up to 1000 competitive time delay relay models.

Product Features

• Microcontroller based: Repeat Accuracy + / - 0.1% or + / - 20ms, whichever is greater
• 6 time ranges (0.1s to 1,000m):Broad range will satisfy most requirements
• Knob adjustable time delay: Allows user to fine tune time delay based on application needs
• Universal input voltage: Makes it versatile for use in most applications
• Multifunction: Provides the most common standard timing functions
• LED Indicators: Provide visual indication of input voltage and relay status
• 10A isolated output contacts: Allows control of loads for AC or DC voltages
