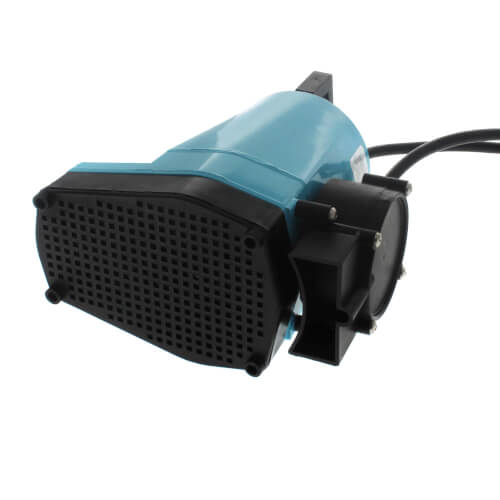

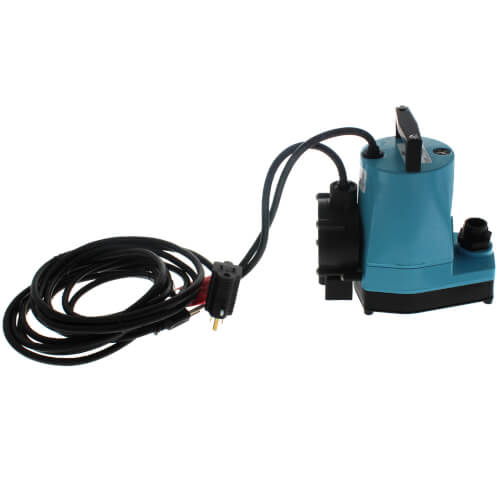

Main product image of 5-ASP 1/6 HP, 1200 GPH - Submersible Utility Pump w/ Piggyback Diaphragm Switch & 10 ft. Power Cord
Magnifying glass
Hover image to zoom

5-ASP 1/6 HP, 1200 GPH - Submersible Utility Pump w/ Piggyback Diaphragm Switch & 10 ft. Power Cord

SKU:
505300
Rating:
(17)
Q&A:
(2)
5-ASP 1/6 HP, 1200 GPH - Submersible Utility Pump w/ Piggyback Diaphragm Switch & 10 ft. Power Cord
Magnifying glass
Hover image to zoom
505300 has been discontinued
Discontinued May 25, 2023
This product was discontinued by the manufacturer.
Suggested Alternative:
5-ASP 1/6 HP - Submersible Utility Pump w/ w/ Piggyback Diaphragm Switch & 10 ft. Power Cord
SKU:505715
(0)
Order by today, receive 9 by Thursday
VIEW ALTERNATIVE
VIEW ALTERNATIVE

Product Highlights

Product Highlight: Horse Power
1/6 HP
Product Highlight: Voltage
115V
Product Highlight: Amperage
5 Amps
Product Highlight: Wattage
380 Watts
Product Highlight: Flow at 5 FT Head
18 GPM
Product Highlight: Max Pressure (PSI)
11.4 MAX PSI

Description

Little Giant's Water Wizard 5-ASP automatic/manual submersible utility pump features an oil-filled motor and epoxy coated cast aluminum housing. it includes a garden hose adapter and removable inlet screen for easy cleaning. Pumps down to 1/8" in manual mode operation. This pump provides efficient, trouble-free service for extended or continuous use in moving large volumes of water.

Specifications:
  • Pumps down to 1/8"
  • 1/6 HP shaded pole motor with overload protection
  • 26.3' maximum lift
  • 1" FNPT discharge
  • ASP On level: 6"-9", Off level: 1"-4"
  • Intermittent Liquid Temp. up to - 120°F

Features:
  • Designed for continuous duty
  • Epoxy coated cast aluminum housing
  • Viton shaft seal
  • Thermal overload protection
  • For submersible use only
  • Piggyback diaphragm switch
  • Lifetime oil supply

Specs

Type:

Automatic

Horse Power:

1/6

Voltage:

115V

Amperage:

5

Wattage:

380

Flow at 5 FT Head:

18 GPM

Flow at 10 FT Head:

16.5 GPM

Flow at 15 FT Head:

14 GPM

Shutoff Head (ft.):

26.3'

Max Pressure (PSI):

11.4

Cord Length:

10'

Discharge:

1" FNPT

Approvals:

UL/CSA

Dimensions:

7.8"H x 7.7"L x 4.3"W

Weight (lbs):

9 lbs

Contact

Help Face
CALL US
Question? Call or text 888-757-4774
+
Help Face

Questions?

Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
MondayThursday
8am7:45pm
Friday
9am7:45pm
SaturdaySunday
9am5:45pm

Response by Thurs

Product Reviews

4.53 out of 17 reviews
94% would recommend this product
4.53
out of 17 Reviews
94% would recommend this product
WRITE A REVIEW
5 star
76%
4 star
12%
3 star
6%
2 star
0%
1 star
6%
WRITE A REVIEW

Most Liked Positive Review

Great pump that does exactly as described.

Purchased this pump to drain an old kitchen sink I put in my basement for washing my hands and small things when I work down there. There is no floor drain to the sewer so the sink drains to a 5 gallon plastic bucked and pump keeps the bucket from overfilling onto the floor. I used a short washing machine hose on supplied adapter, then ran a PVC pipe with check valve up the wall and into the main house drain at ceiling level. I love finally having a sink in my basement. The integral switch and compact size makes it perfect for my need. I chose the Little Giant as it appears to be better constructed than some of the bargain utility pumps out there. I hope the little bit higher price and quality pays off in the long run.
VS

Most Liked Negative Review

A useful pump, with reservations

We use 2 of these as sump pumps in our basement and crawl space. They certainly have sufficient pressure and volume. They have important advantages over e.g. pedestal pumps: they pump out the sump to a lower level, they will fit in a very small sump, and they don't protrude above it. However, in our experience, they don't last forever. Over a period of 15 years, we've had about 8 of them. Some have lasted several years, others just a few; one failed after ~6 months and was replaced under warranty. Also, the levels at which the pump turns on and off are neither adjustable nor consistent. The pump is controlled by a microswitch activated by water pressure on a diaphragm, and thus is very dependent on the spring in the switch, which seems to be quite variable. Typically, it turns on when the water level is near the top of the pump and off when it reaches an inch or two from the bottom, but we've had switches that required 3-4" of water above the top of the pump, another that did not turn on even at 6" over the top (and had to be replaced), and one that was turning on and off every 10-15 seconds, dramatically decreasing the life of the pump. We still use these pumps because we like the other features, but I wish the quality and characteristics were more consistent.
Showing 1-10 of 17 reviews

Very good sump pump - especially with built in level control

My first pump for beneath house sump pump service lasted over 16 years without a hic-up. I found the collection basin was plugged with silt so figured I would just replace the pump since it had been so many years. The old pump still worked fine! New replacement pump has been in service for another 3 years and running fine.
Ryan
Blaine, WA
3 years ago
Was this review helpful to you?

Right product. Great service!

Supply House had the pump I needed at a good price and got it to me quickly. All good!
Jerry
Seattle
4 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Great service!

I'd been looking for this pump for two months. Supply House had it and sent it out within 12 hours. Super nice customer service and follow through! I'll go to Supply House first from now on.
Housediva
Moraga,ca
4 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

first one lasted 20 years

Fingers crossed that this one lasts the same. It is in a basement kitchen where the kitchen sink is below the sewer line so it comes on constantly. But the first one lasted 20 years, and I was happy I could get the identical one to replace the old one. The pressure switch finally failed on the old when the rubber gasket started leaking.
EH
Seattle WA
6 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

this small pump is a BIG help in keeping our water flowing.

I use this pump for my cellar drain pumping and in removing water from our pool.
X RAY
CT
6 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

I would NOT buy this product again.

I returned this product because the one I bought last year didn't work for more than one year despite extensive trouble shooting. I then discovered that Supply House sold the Little Giant with a float switch and it is working just great. I highly recommend the pumps with a float switch over the diaphragm switch
Eric
MN
6 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Great pump!

I replaced the same pump that lasted almost 20 years. Product was delivered within 4 days of placing the order.
Cheesehead
Redondo Beach, CA
6 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

replacement for same model

used in an a/c sump to remove excess ground water and condensation from distribution system.
Ray
Dallas
7 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Love this product

This pump replaced a 25 year old one just like it. My new puppy ruined the cord and plug so we had to purchase a new one. We use it to remove water off the pool cover and it does a great job. It's a work horse.
Pump
Georgia
7 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

I would repurchase this product from Supply House

Fortunately (for me), I probably will not need to repurchase this sump pump for another 25 + years, providing the quality from Little Giant has remained the same from nearly 3 decades ago. I think that I could have lasted even longer, if the neighbor hadn't inadvertently buried it with dirt which resulted in motor burnout. I hope this pump lasts even longer!!
Mike
Los Gatos
7 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Product Q&A

2 Questions
2 Questions
ASK A QUESTION

Q: I want to use this `pump to pump standing water in the back yard to the storm sewer. I have used it before and it seems to work. this use requires me to monitor the level so it doesn't run dry. does the diaphragm switch turn it off when level is low? Right now I have the manual little giant.

Asked by mschwartzw 8 years ago

Add your answer

* Required Field
Verified Author and ReplyVerified Reply- SupplyHouse Staff

Yes, the Piggyback Diaphragm Switch can turn the pump on when water level reaches 6" to 9" and turn it off when the water level is at 1" to 4"

Was this review helpful to you?

Q: Hi, I'm looking for an auto pump for yard drainage issues (on a concrete surface). Is there a certain amount of pressure or depth of water that turns this on? Thanks, Joel

Asked by Joel 11 years ago

Add your answer

* Required Field
Verified Author and ReplyVerified Reply- SupplyHouse Staff

The automatic switch kicks on between 6" and 9", and off between 1" and 4".

Was this review helpful to you?
-

Yes – this is a submersible pump and it requires that the water cover the entire pump before it switches on. Then it runs until the water level nears the base of the pump. This would not do the job for you, since a vast amount of water (several inches worth) would have to accumulate before it switched on. It sounds like you need a manual pump, but that would need to be monitored (most if not all cannot be allowed to run dry).
