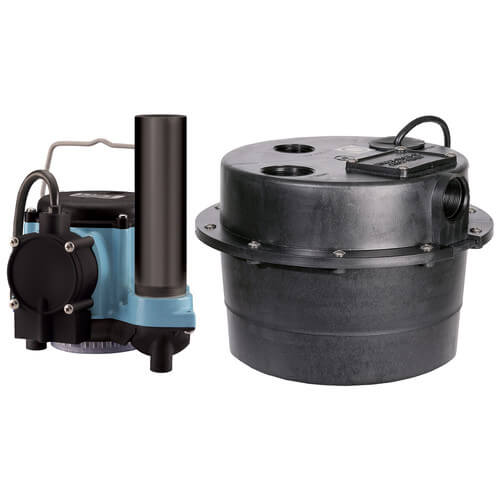

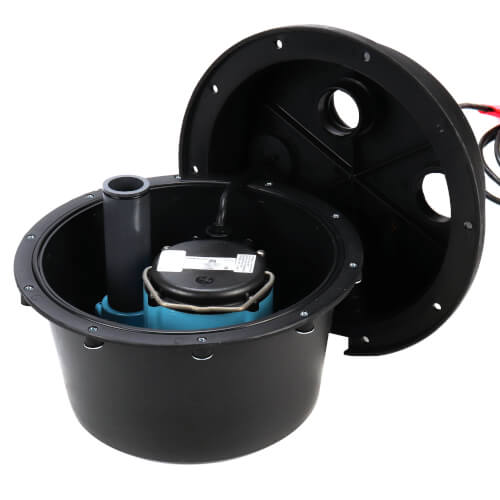

Main product image of WRSC-6 1/3 HP, 45 GPM @ 5', 230V - Submersible Utility Pump Water Removal System w/ 3-1/2 gal. tank. & 8ft power cord w/o plug

Hover image to zoom

WRSC-6 1/3 HP, 45 GPM @ 5', 230V - Submersible Utility Pump Water Removal System w/ 3-1/2 gal. tank. & 8ft power cord w/o plug

Name: WRSC-6 1/3 HP, 45 GPM @ 5', 230V - Submersible Utility Pump Water Removal System w/ 3-1/2 gal. tank. & 8ft power cord w/o plug
Brand: Little Giant
SKU: 506066
Price: 296.1 USD
Availability: OutOfStock

Brand:

Little Giant

SKU:

506066

Rating:

(0)

Q&A:

(0)

WRSC-6 1/3 HP, 45 GPM @ 5', 230V - Submersible Utility Pump Water Removal System w/ 3-1/2 gal. tank. & 8ft power cord w/o plug

Hover image to zoom

506066 has been discontinued

Discontinued October 22, 2021

This product was discontinued by the manufacturer.

MANUALS (2)

Replacement Parts

Product Highlights

–

1/3 HP

3.5 Gallons

230V

5 Amps

720 Watts

46 GPM

Description

–

Compact unit includes 3-1/2 gallon (13.2 L) tank, only 10-1/2" (26.6cm) high. Automatic submersible pump with mid-level activating switch; 8' (2.4m) power cord. Consult factory for specific replacement pump. Basin is IAPMO approved.

3/10HP Shaded Pole Motor
46 GPM/174 LPM
18'/5.5m Maximum Head
Intermittent Liquid Temp. up to 125¦F
1 1/2" FNPT (38.1mm) Discharge
Epoxy coated cast iron housing
Polycarbonate Cover
Polypropylene Volute
Nylon Impeller
Carbon/Ceramic Shaft Seal
Upper and lower bearings
Automatic Operation
Activator - Diaphragm switch
Switch on - 4" - 7"/10.2cm - 17.8cm
Switch off - 1" - 3"/2.54cm - 7.6cm
230V, 50/60Hz, 4.5 amps
IAPMO Approved Basin

Specs

–

Type:	Automatic
Horse Power:	1/3
Volume:	3.5 Gallons
Voltage:	230V
Amperage:	5
Wattage:	720
Flow at 5 FT Head:	46 GPM
Flow at 10 FT Head:	29 GPM
Flow at 15 FT Head:	12 GPM
Approvals:	UL/CSA
Weight (lbs):	26 lbs.
Dimensions:	14.5"W x 10.5"H
Cord Length:	8' 8' (no plug)
Discharge:	1-1/2" FNPT
Shutoff Head (ft.):	18'
Max Pressure (PSI):	7.8
