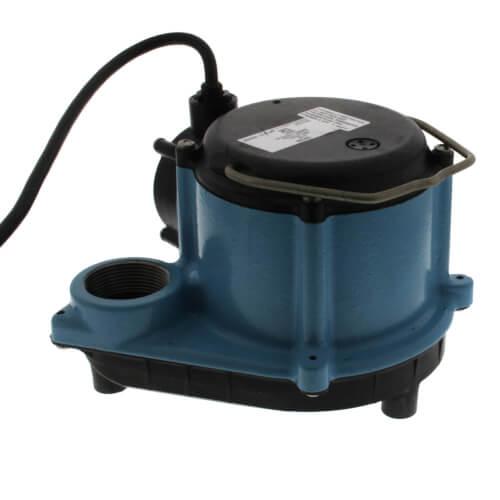

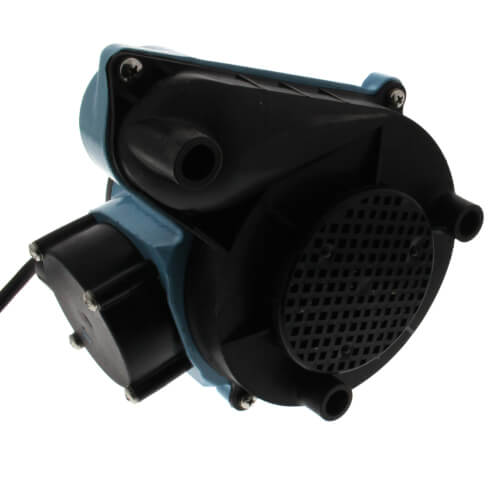

6-CIM 1/3 HP, 45 GPM (175LPM), 230V - 6-CIM Manual Submersible Sump Pump, 12ft (3.6m) power cord
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$220.92 each
In Stock
Get 11 Wed, Jul 8
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V
46 GPM
1/3 HP
12' (no plug)
1-1/2" FNPT
4.5 Amps
Description
–
Note: This product is not for use with potable water, and cannot be used in pool applications.
For residential and light commercial use, the 6-CIM manual submersible sump pump provides efficient and reliable service. Pumps has a 1-1/2" discharge with an 18' maximum head. Cast iron motor housing is oil-filled for lifetime lubrication and excellent heat dissipation. Polycarbonate cover and polypropylene volute-base.
For residential and light commercial use, the 6-CIM manual submersible sump pump provides efficient and reliable service. Pumps has a 1-1/2" discharge with an 18' maximum head. Cast iron motor housing is oil-filled for lifetime lubrication and excellent heat dissipation. Polycarbonate cover and polypropylene volute-base.
- 1/3 HP, 230 Volt, 12' (3.6m) Power Cord
- Screened inlet
- Epoxy coated cast iron motor housing for corrosion and rust resistance.
- Oil filled motor housing for lifetime lubrication and rapid heat dissipation.
- Stainless steel screws, bolts, and handle.
- Mechanical shaft seal (stainless steel spring, nitrile parts, carbon and ceramic faces)
- Manual operation (pump can easily be converted to automatic operation using the RS-5 or RFSN-9)
- Thermal overload protection
Specs
–
| Shutoff Head (ft.): | 18' |
|---|---|
| Cord Length: | 12' (no plug) |
| Type: | Manual |
| Horse Power: | 1/3 |
| Application: | Plumbing |
| Voltage: | 230V |
| Amperage: | 4.5 |
| Wattage: | 720 |
| Flow at 5 FT Head: | 46 GPM |
| Flow at 10 FT Head: | 29 GPM |
| Flow at 15 FT Head: | 13 GPM |
| Max Pressure (PSI): | 7.8 |
| Weight (lbs): | 18.5 lbs |
| Dimensions: | 6"H x 9.5"L x 8.5"W |
| Discharge: | 1-1/2" FNPT |
