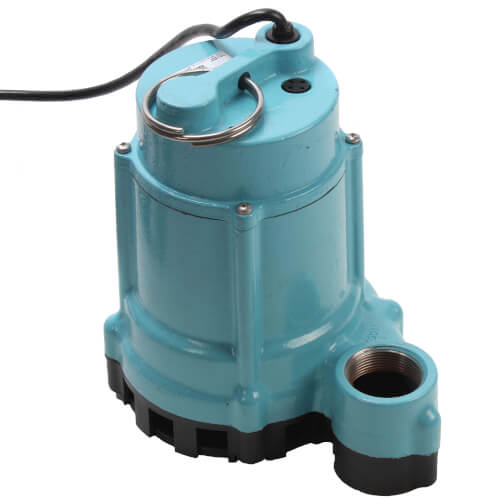

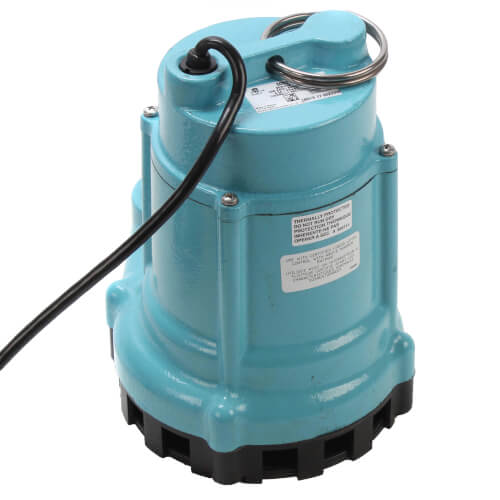

9EN-CIM 4/10 HP, 80 GPM - Manual Submersible Sump Effluent Pump, 20' power cord (208-230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
509219 has been discontinued
Discontinued December 30, 2022
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces: 509250
Suggested Alternative:
9EC-CIM 4/10 HP, 70 GPM - Manual Submersible Sump Effluent Pump, 20' power cord (208-230V)
Backorder
Product Highlights
–
208/230V
80 GPM
4/10 HP
20'
1-1/2" FNPT
4 Amps
Description
–
Little Giant 9EN Series Effluent Pumps are rated for continuous duty in dewatering, water transfer, and effluent wastewater removal applications.
Features
Features
- 4/10 hp PSC motor with thermal overload protection
- Energy saving low amp draw
- Cooler running motor which extends the life of the pump
- Cast iron pump housing with protective epoxy coating for corrosion and rust resistance, polypropylene base
- Stainless steel screws, bolts and handle
- Mechanical seals (stainless steel spring, nitrile parts, carbon and ceramic faces)
- Upper sintered sleeve and lower ball bearing
- 1-1/2" FNPT discharge
- Fully submersible
- Handles liquid and solid waste materials up to 3/4" diameter
- Avaliable in manual or automatic operation:
- Piggyback mechanical float switch
- On level 9"- 14"
- Off level 2" - 6"
- Integral Float Switch
- On level 7" - 10"
- Off level 2" - 5"
- Two year warranty
Specs
–
| Application: | Dewatering Effluent Waste Water Transfer |
|---|---|
| Type: | Manual |
| Horse Power: | 4/10 |
| Voltage: | 208/230V |
| Amperage: | 4 |
| Wattage: | 800 |
| Flow at 5 FT Head: | 80 GPM |
| Flow at 10 FT Head: | 70 GPM |
| Flow at 15 FT Head: | 60 GPM |
| Shutoff Head (ft.): | 32' |
| Max Pressure (PSI): | 14.1 |
| Approvals: | UL/CSA |
| Solids Size: | 3/4" |
| Discharge: | 1-1/2" FNPT |
| Cord Length: | 20' |
| Dimensions: | 9.15" H x 9.6" L x 6.8" W |
| Weight (lbs): | 27 lbs |
| Material: | Cast Iron |
