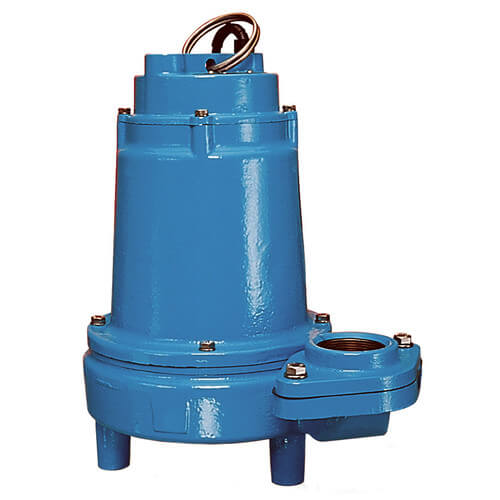

16EH-CIM 1 HP, 90 GPM, 230V - Manual Submersible High Head Effluent Pump, 20ft power cord
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,197.75 each
In Stock
Get 2 Wed, Jul 8 - Fri, Jul 10
MANUALS (2)
Lift Gate
–
This product weighs 88.5 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
20'
1 HP
230V
2"
Description
–
The Eliminator Submersible High Head Effluent pumps are designed to handle 3/4" solids. Shut-off at 50', heavy-duty cast iron housing, volute and vortex impeller, thermal overload protection and 2" FNPT discharge.
- Handles liquids with 3/4" solids
- Cast iron pump housing, impeller and volute with protective epoxy coating for corrosion and rust resistance
- Oil filled motor housing for lifetime mechanical seal and bearing lubrication and efficient heat dissipation
- Stainless steel screws, bolts, handle, and seal assembly
- Mechanical seals (stainless steel spring, nitrile parts, carbon and ceramic faces) with secondary exclusion seal
- High speed (3450 RPM), 1 HP, ball bearing motor with terminal overload protection for high head operation
- Permanent split capacitor design
- Capacitor and power cord connections isolated from oil filled housing for ease of field maintenance
- Dynamically balanced two-vane vortex impeller with pump-out vanes to keep solids away from seal for less seal and bearing wear
- 2" Discharge
Specs
–
| Cord Length: | 20' |
|---|---|
| Shutoff Head (ft.): | 81' |
| Horse Power: | 1 |
| Type: | Manual |
| Voltage: | 230V |
| Solids Size: | 3/4" |
| Discharge: | 2" |
| Phase: | 1 |
