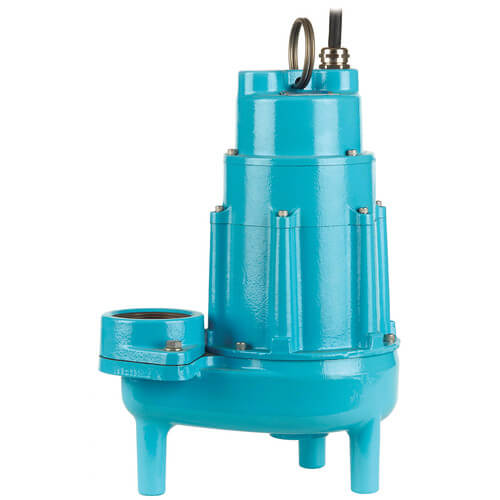

20S-CIM 2 HP, 205 GPM, 200-208V - Manual Submersible Sewage Ejector Pump, 3 phase - 20ft power cord w/o plug
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,663.19 each
In Stock
Get 3 Wed, Jul 8 - Fri, Jul 10
MANUALS (2)
Lift Gate
–
This product weighs 95 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208V, 200v
2 HP
20'
3"
2769 Watts
14.5 Amps
Description
–
The Magnum submersible pumps from Little Giant are specifically engineered to handle the tough demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability. The Magnum series includes pumps for use in Residential, Commercial, Industrial and Agricultural applications with light to medium transfer demands. For dewatering, effluent waste, wastewater and sewage handling where such materials must be moved upward from a collection area to sewer or septic lines, or drainage areas, the Magnum is an ideal solution.
- Cast iron pump housing with protective epoxy coating for corrosion and rust resistance.
- Handles liquids and solid waste materials up to 2" diameter.
- 3" Vertical Discharge
- Oil-filled motor housing for life time lubrication and rapid head dissipation.
- Upper and lower ball bearings.
- Stainless steel screw, bolts, handle and seal assembly.
- Mechanical seals (stainless steel spring, nitrile parts, carbon and ceramic faces)
- Thermal overload protection of single phase units
- Brass impeller
- Capacitor start on single phase units
- Continuous Duty Rated - This means the pump ratings are within the motor manufacturer's recommended working limits when the pump is operated continuously under conditions shown in the manufacturer's published ratings.
- 3 Phase Pump Must Have a 3 Phase Control Panel for Automatic or Manual Operation
Specs
–
| Cord Length: | 20' |
|---|---|
| Shutoff Head (ft.): | 77' |
| Type: | Manual |
| Application: | Sewage Sewage Waste Transfer Effluent |
| Horse Power: | 2 |
| Wattage: | 2769 |
| Voltage: | 208V 200v |
| Amperage: | 14.5 |
| Flow at 10 FT Head: | 205 GPM |
| Flow at 15 FT Head: | 195 GPM |
| Approvals: | UL/CSA |
| Weight (lbs): | 96 lbs |
| Dimensions: | 19.1"H x 13"L x 8.5"W |
| Discharge: | 3" |
| Solids Size: | 2" |
| Max Pressure (PSI): | 33.3 |
| Features: | Three-phase |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
2 Questions2 Questions
Q: What size pump would I need in order to get 200GPM @ 80PSI, effluent waste water, 2"PVC, 200' almost level piping, maybe 3' MAX above pump height. Looking for a system to spray water out over perk/evap ponds to help with evap.
Asked by William 16 years ago
Add your answer
Verified Reply- PexSupply StaffUnfortunately Little Giant does not make pumps that will go as low as 3' maximum head, the lowest any of their pumps will go is 5' minimum. This pump specifically will go up to 200 gpm at 10 feet.
Was this review helpful to you?
Q: what is the output psi @ 150gpm.
Asked by Will 16 years ago
Add your answer
Verified Reply- PexSupply StaffAt 150 GPM the maximum head pressure is 25.
Was this review helpful to you?
