Description

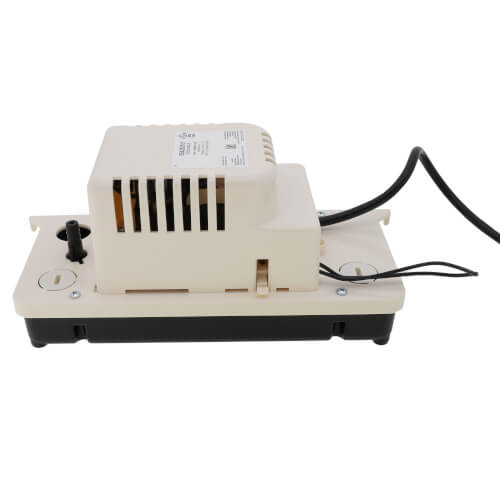

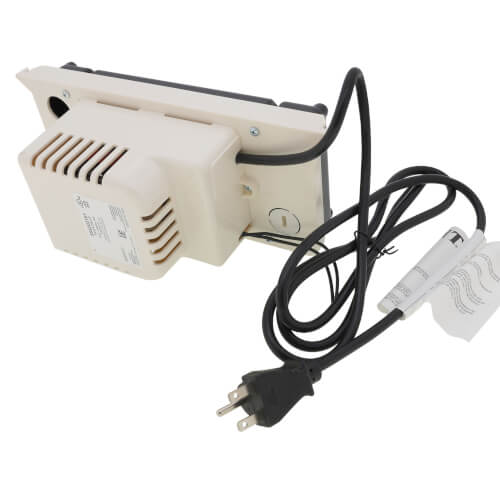

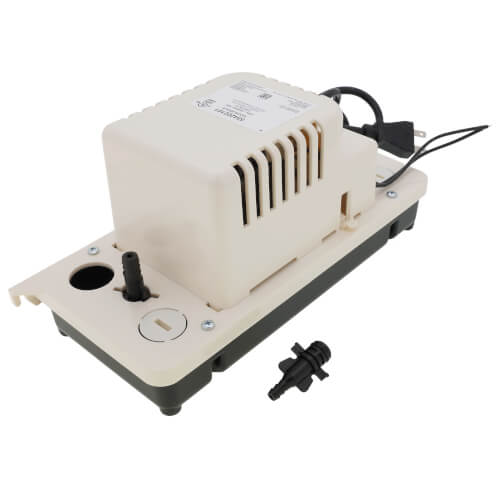

Designed for automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment when gravity drainage is not possible or practical. The VCCA Series’ low tank height allows these condensate pumps to be used where other condensate pumps will not fit. Suitable for high efficiency condensing furnace and boiler equipment applications.

Product Features
  • 1/30 hp motor
  • Low profile for limited space applications
  • 1/4-turn, twist-off locking check valve discharge adapter for 3/8" ID tubing
  • Additional check valve adapter included for 1/4" ID vinyl tubing
  • Pump switch test lever (for manual test operation)
  • Rubber feet on bottom of tank to isolate pump when placed on hard surface
  • 3 inlet openings suitable for 3/4" PVC pipe
  • Easy-to-knock-out plugs in two of the inlet openings
  • Includes overflow detection switch with 5" leads
  • ABS tank, motor cover, and volute
  • Intermittent liquid temperature up to 120 °F
  • Stainless steel motor shaft
  • Thermal overload protection
Hide Description
Manuals (1)
Specs
Flow at 1 FT Head:

80 GPH

Horse Power:

1/30

Shutoff Head (ft.):

17'

Voltage:

230v

Wattage:

75

×
