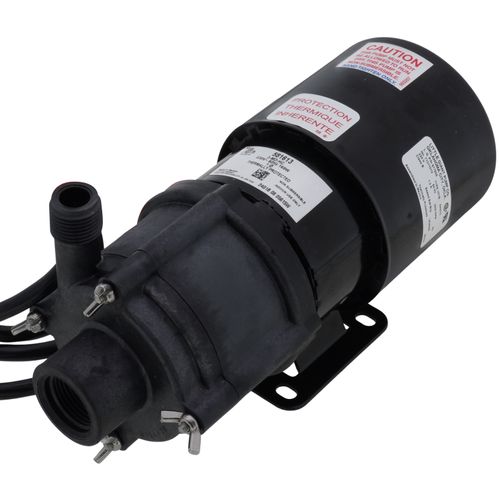

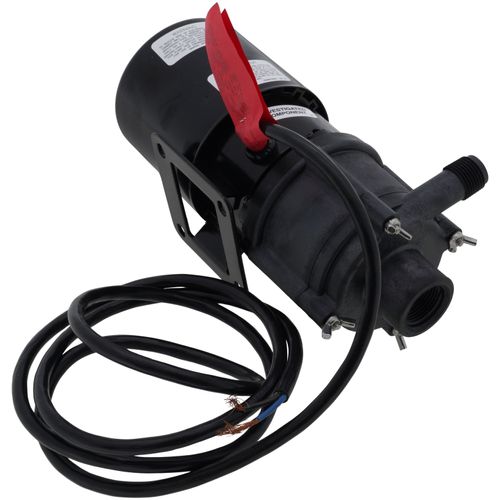

3-MD-HC, Magnetic Drive Pump for Strong Acids, 1/12 HP (230V)

Magnetically driven pumps for highly corrosive chemicals and solutions. These pumps feature polyphenylene sulfide (e.g. Ryton), Viton, carbon and ceramic parts. Thermally protected open fan-cooled motor with sleeve bearings. 6 ft power cord and 3-prong molded plug. (230V version has no plug).

The Little Giant MD-HC series features leak-proof, seal-less magnetic drives and are designed for in-line, non-submersible use. Volute, magnet housing and impeller are glass-filled Ryton for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.

Applications:

• Circulation of highly corrosive acids
• alkalis
• solvents
• brine
• plating solutions
• sterile solutions
• other highly corrosive chemicals and solutions that are compatible with the pump's material of construction

Features:

• 1/12 HP open FC motor
• Glass-filled polyphenylene sulfide magnet housing and volute
• 1.1 specific gravity
• Run-Dry capability up to 8 hours
• Thermally protected, open, fan-cooled motor
• Fluoroelastomer (FKM) O-ring
• Ceramic thrust washers and shaft
• C-cCSAus listed (581603 and 581613)
