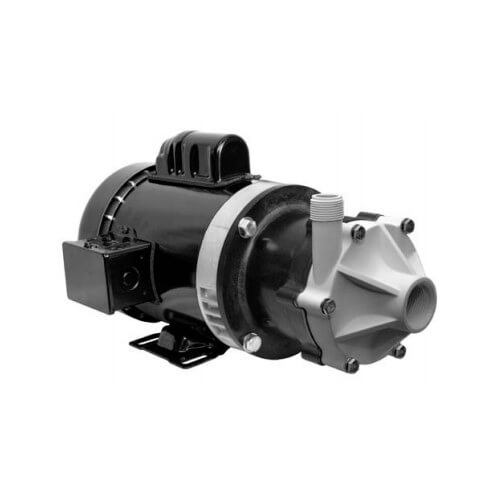

TE-5.5-MD-SC, Magnetic Drive Pump for Semi-Corrosive Materials, 1/3 HP (115/230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$952.32 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
This item replaces: 585598
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
6'
1/3 HP
1900 GPH
115/230V
2850/3450 RPM
5 Amps
Description
–
Magnetically driven pumps for semi-corrosive chemicals and solutions. These pumps feature polypropylene, ceramic and Buna-N parts. Thermally protected open fan-cooled motor with sleeve bearings. 6 ft. power cord and 3-prong molded plug.
The Little Giant MD-SC series features leak-proof, seal-less magnetic drives and are designed for in-line, non submersible use. Volute, magnet housing and impeller are glass-filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.
Applications: Circulation of moderately corrosive acids, alkalis, solvents, brine, plating solutions, and other mildly corrosive chemicals and solutions that are compatible with the pump's material of construction
Features:
The Little Giant MD-SC series features leak-proof, seal-less magnetic drives and are designed for in-line, non submersible use. Volute, magnet housing and impeller are glass-filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.
Applications: Circulation of moderately corrosive acids, alkalis, solvents, brine, plating solutions, and other mildly corrosive chemicals and solutions that are compatible with the pump's material of construction
Features:
- Specific Gravity - up to 1.1'
- Ambient Air Temperature - up to 77F (25C).
- Fluid Temperature – Up to 150F (66C).
Specs
–
| Shutoff Head (ft.): | 40.5' |
|---|---|
| Cord Length: | 6' |
| Application: | Mild to Strong Acids |
| Horse Power: | 1/3 |
| Flow at 5 FT Head: | 1900 GPH |
| Voltage: | 115/230V |
| Hertz: | 50/60 |
| RPM: | 2850/3450 |
| Amperage: | 5 |
| Wattage: | 525 |
| Weight (lbs): | 27 lbs |
| Dimensions: | 7"H x 8.75"W x 15.25"L |
| Capacity (Gallons): | 31.7 |
