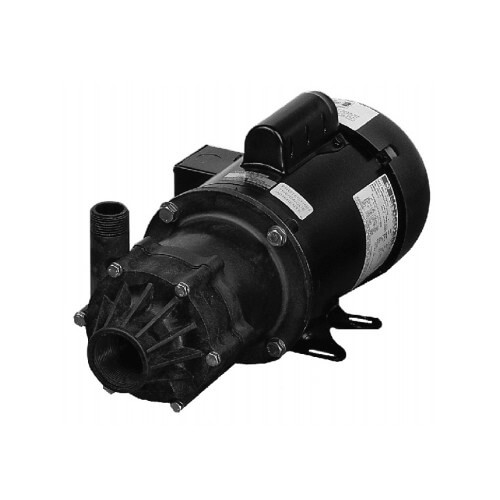

TE-7-MD-CK, Magnetic Drive Pump for Highly Corrosive Materials, 3/4 HP (115/230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4 HP
3180 GPH
115/230V
2850/3450 RPM
10.4 Amps
1230 Watts
Description
–
Magnetically driven pumps for highly corrosive chemicals and solutions. These pumps feature polyvinylidene fluoride (e.g. Kynar), PTFE, carbon, ceramic and Viton parts. Thermally protected totally enclosed fan-cooled split phase motor with ball bearings. Conduit box (must be wired in field). Cord not included.
The Little Giant MD-CK series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersible use. Volute, magnet housing and impeller are carbon-filled Kynar for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.
Features:
The Little Giant MD-CK series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersible use. Volute, magnet housing and impeller are carbon-filled Kynar for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.
Features:
- Specific Gravity - up to 1.1.
- Ambient Air Temperature - up to 77 ºF (25 ºC).
- Fluid Temperature – Up to 200 ºF (93 ºC).
Specs
–
| Application: | Highly Corrosive Acids |
|---|---|
| Horse Power: | 3/4 |
| Flow at 1 FT Head: | 3180 GPH |
| Shutoff Head (ft.): | 58.5' |
| Voltage: | 115/230V |
| Hertz: | 50/60 |
| RPM: | 2850/3450 |
| Amperage: | 10.4 |
| Wattage: | 1230 |
| Weight (lbs): | 30 lbs |
| Dimensions: | 7"H x 8.75"W x 14.40"L |
| Capacity (Gallons): | 53 |
