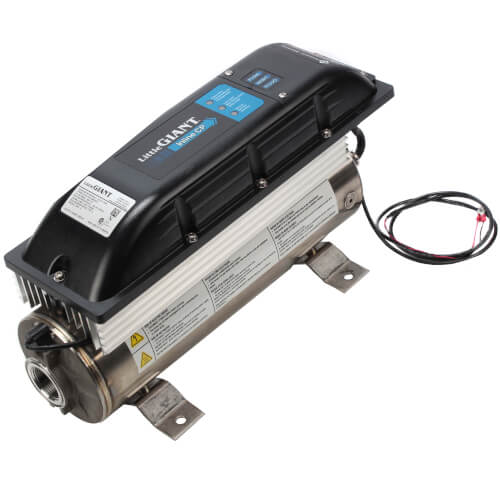

Inline Constant Water Pressure System (1.2HP, 230V)

Inline Constant Water Pressure System provides consistent water pressure regulation using advanced electronics to drive the pump/motor according to the system's real-time demand. The Little Giant 25LGIL1100N4 includes highly accurate, heavy-duty, longlife pressure sensor for constant monitoring of the water pressure demand.

By adjusting the pump/motor speed, the Inline System automatically reacts to any change in system demand while maintaining a constant output pressure. The Inline System's constant output pressure should not fluctuate more than a PSI or two, even though the overall system's water flow requirement may change dramatically. Small demand on the system results in the motor/pump running at its lowest speed. As greater demands are placed on the system the speed increases accordingly to maintain the desired system pressure.

Applications:

Boosted and consistent water pressure from water storage/cistern systems;

Homes - both in private and municipal applications

General pressure boosting

Sprinkler systems

Farming and commercial wash down systems

Features:

A complete and packaged system: Pump, motor, drive and pressure switch in one box

Small and compact design: Fits into small areas, even between floor joists

Stainless steel construction: Made for years of operation

Simple and easy installation: Step-by-step illustrated instructions

Quiet and cool operation: Integrated motor design allows water to flow around it

NEMA 4 electronics enclosure

Multiple mounting configurations

Install units where you need them: horizontal, vertical & even upside down

Product power rating: 1.2 hp, 0.9 kW

Built in system protections guard the Inline unit from many common failure modes including: surge protection, voltage underload, locked pump, open circuit, short circuit and overheated controller.
