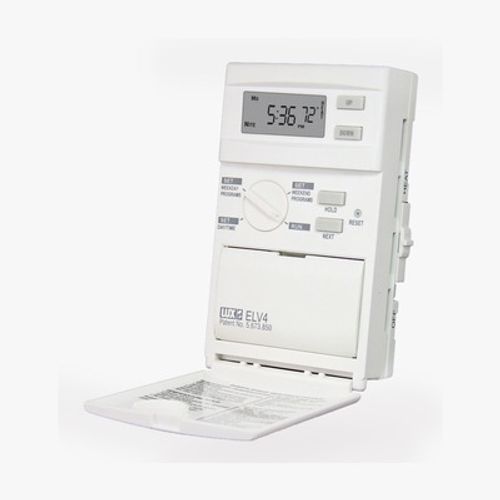

5-2 Day Programmable Line Voltage Thermostat, Single/Double Pole, Heat Only, ELV4-A05

This item is a 5-2 Day Programmable Line Voltage Thermostat, Single/Double Pole, Heat Only, ELV4-A05 manufactured by LUX.

A heat only line voltage thermostat offering 5/2-day programmable settings for ease and greater comfort. The ELV4 line voltage heat only thermostat provides dependable comfort. A cost effective, energy saving programmable thermostat for baseboard, cable and ceiling heat. With its flexibility in programming end users will benefit from the energy efficiency with savings on utility bills.

Product features:

• Easy to use
• Easy to read display
• Pre-programmed: 4 periods per day
• Temporary override and manual hold
• 3 year warranty
• Selectable fahrenheit/celsius setting
• Adjustable temp swing (differential)
• Positive on/off switch
• Optional wall plate
• UL approved
• Requires 2AA Alkaline batteries
• Mercury free

Compatible with:

• 1 stage heat only: single or double pole
• 120/240 VAC Systems up to 15 AMPS
• Hydronic (hot water) systems with motors up to 1/4HP
• 120V: 1,800 Watts (resistive)/240V: 3,600 Watts (resistive)

Not Compatible with: Conventional 24V heating/cooling systems
