Product Highlights
–
1/4 HP
208/230V
1075 RPM
Reversible
Description
–

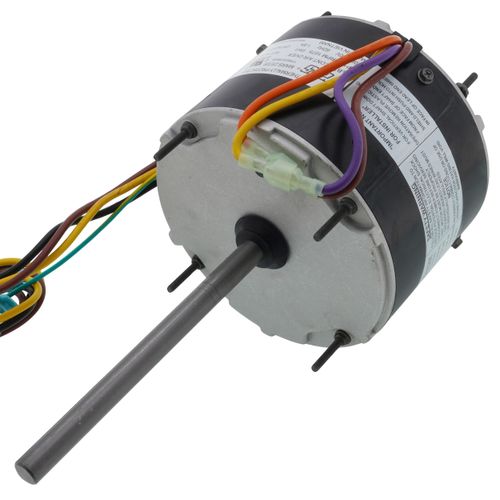

MARS 3 Wire condenser fan
motors replicate OEM wiring for
condenser fan motors speeding
installation and saving time.
Condenser fan motors are
designed for either shaft-up or
shaft-down applications.
End shields are enclosed for
weather protection. A weep hole
is provided in each end shield to
allow condensate to drain.
All of these motors are suitable
for air conditioning or heat
pump applications.
Features:
Specifications:
Features:
- All angle, ball bearing
- Rheem mounting holes w/screws installed
- Water slinger on shaft
- Thru bolt or band mounting
- Capacitor requirement noted on motor label
- Double full flatted shaft
Specifications:
- Motor Type: PSC
- Enclosure: TEAO
- H.P. (Max.): 1/4
- Voltage: 208-230
- Speeds: 1
- Hz: 60
- Rotation: REV
- RPM Range: 1075
- NEMA Frame Size: 48
- Phase: Single
- Standards: CUL
- FLA: 1.8
- Mount: All Angle
- Bearing: Ball
- Shaft Length Inches: 6.5
- Shaft Dia Inches: 1/2
- Thermal Protection: Auto
- Ambient Deg C: 60
- Ins. Class: Class B
- Capacitor Included: No
- Capacitor Rating: 5/370
- 36 inch leads
- Fan duty, continuous, air over
- Totally enclosed
Specs
–
| Horse Power: | 1/4 |
|---|---|
| Voltage: | 208/230V |
| Shaft Length: | 6-1/2" |
| Shaft Diameter: | 1/2" |
| RPM: | 1075 |
| Product Type: | Condenser Fan Motor |
| Speeds: | 1 |
| Rotation: | Reversible |
| Frame: | 48 |
| Enclosure Type: | Totally Enclosed Air Over (TEAO) |
