Description

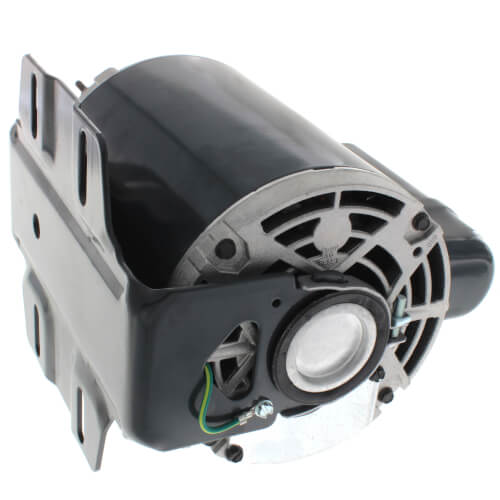

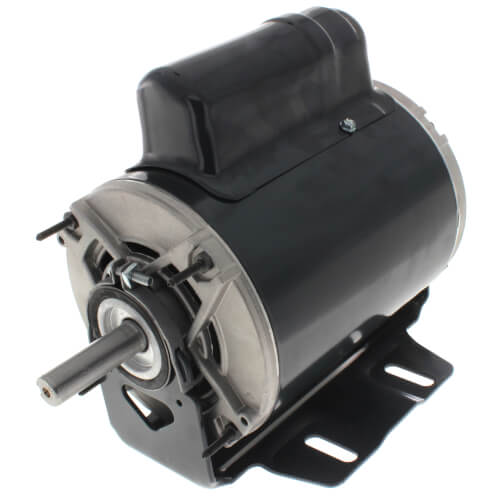

Fan & Blower Motor - 1/2 HP, 1800 RPM, 1 PH, Selective CCW (115/208-230V)

Features:
  • Heavy gauge steel frame and base
  • Ball bearings (except as noted)
  • Thermal protection, as noted
  • Capacitor start design for high starting torque
  • Capacitor start/capacitor run design for higher efficiency, as noted
  • 48Y and 48YZ have 48/56 Fr mounting holes
  • Service Factor, as noted
  • UL Recognized and CSA Certified

Read more
Manuals (1)
Specs
Type:
Fan & Blower
RPM:
1725
Amperage:
8.0/4.1 - 4.0
Horse Power:
1/2
Voltage:
115/208-230v
Phase:
1
Frame:
56
Mount:
Resilient Base - Extended Studs
Bearings:
Ball
Rotation:
Selective CCW
Enclosure Type:
Drip Proof
Motor:
Capacitor Start/Induction Run
Poles:
4
Duty:
Continuous
Speeds:
1
Max Ambient Temp (°F):
104°F
Insulation Class:
B
Motor Orientation:
Horizontal
Overload Protection:
Automatic
×
