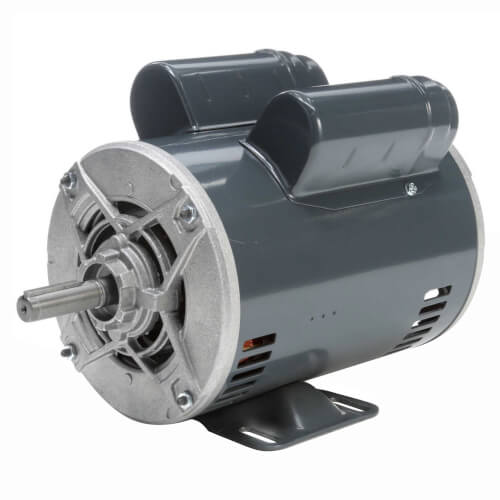

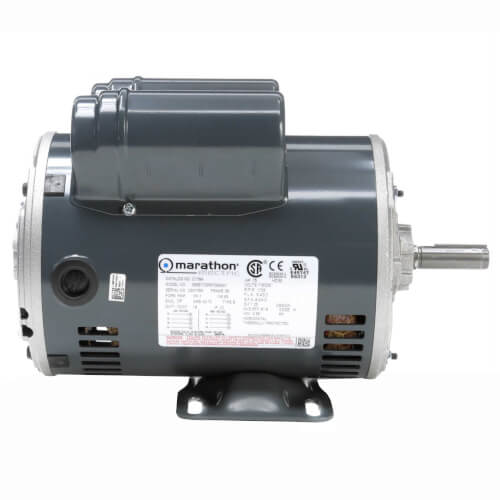

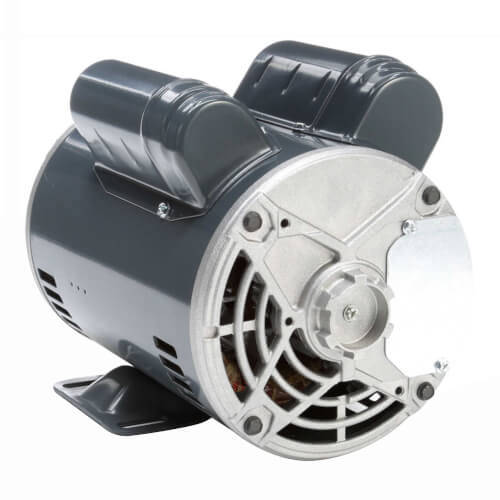

General Purpose Motor - 3/4 HP, 1725 RPM, 1 PH (115/208-230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$433.61 each
In Stock
Get 16 Fri, Jun 19
Order by today, receive Friday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115/208-230v
1725 RPM
Selective CCW
3/4 HP
Rigid Base
6.6 Amps
Description
–
Marathon 0.75 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 56 Frame, ODP
Features:
Features:
- Heavy gauge steel frame and base
- Capacitor start/capacitor run design for reduced amperage
Specs
–
| Type: | General Purpose |
|---|---|
| RPM: | 1725 |
| Amperage: | 6.6 |
| Horse Power: | 3/4 |
| Voltage: | 115/208-230v |
| Phase: | 1 |
| Frame: | 56 |
| Bearings: | Ball |
| Rotation: | Selective CCW |
| Mount: | Rigid Base |
| Enclosure Type: | Drip Proof |
| Motor: | Capacitor Start/Capacitor Run |
| Duty: | Continuous |
| Poles: | 4 |
| Speeds: | 1 |
| Insulation Class: | B |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
| Overload Protection: | Automatic |
