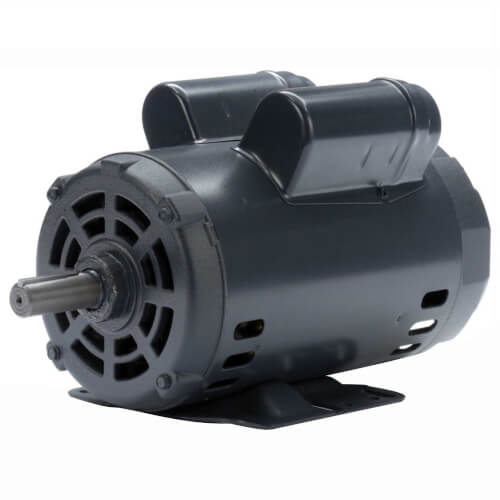

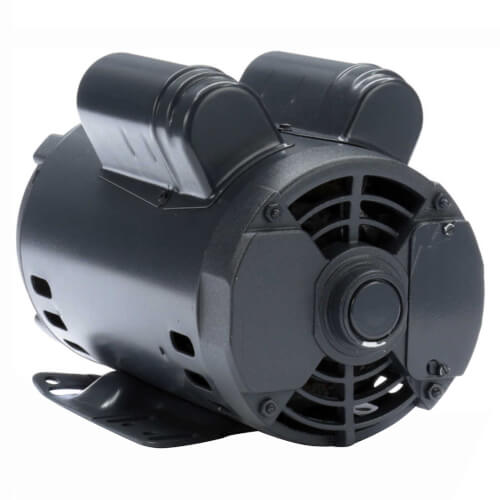

1 Phase ODP Capacitor Start General Purpose Motor, 56HZ Frame (115-208/230V, 1725 RPM, 2 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$750.36 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115/230V
Reversible
2 HP
Rigid Base
17.6 Amps
Description
–
1 Phase ODP Capacitor Start General Purpose Motor, 56HZ Frame (115-208/230V, 1725 RPM, 2 HP)
Product Description
Product Description
- Heavy gauge steel frame and base
- Capacitor start/capacitor run design for reduced amperage
- Energy saver design
- Shaft extension 2-1/4" long by 7/8" diameter
Specs
–
| Type: | General Purpose |
|---|---|
| Voltage: | 115/230V |
| Amperage: | 17.6 |
| Horse Power: | 2 |
| Phase: | 1 |
| Frame: | 56HZ |
| Mount: | Rigid Base |
| Bearings: | Ball |
| Rotation: | Reversible |
| Enclosure Type: | Open Drip Proof |
| Motor: | Capacitor Start/Capacitor Run |
| Poles: | 4 |
| Duty: | Continuous |
| Insulation Class: | B |
| Max Ambient Temp (°F): | 104°F |
| Overload Protection: | None |
| Motor Orientation: | Horizontal |
