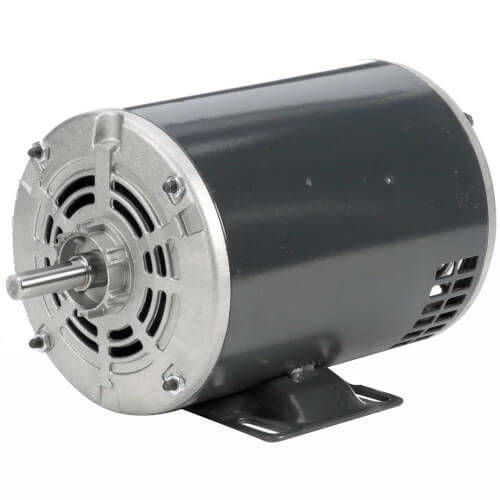

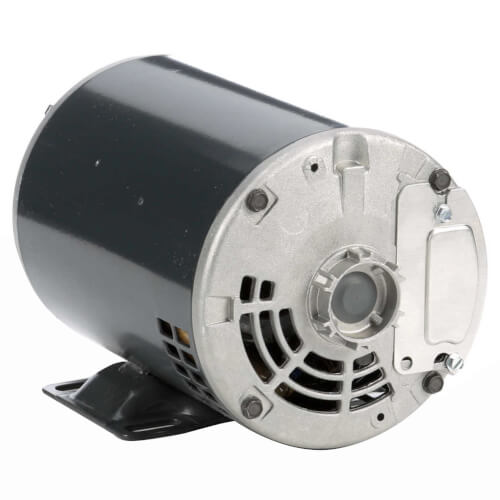

General Purpose Motor - 1/4 HP, 1725 RPM, 3 PH (230/460V)
Hover image to zoom

General Purpose Motor - 1/4 HP, 1725 RPM, 3 PH (230/460V)

SKU:
G044A
Rating:
(0)
Q&A:
(0)
General Purpose Motor - 1/4 HP, 1725 RPM, 3 PH (230/460V)
Hover image to zoom
$341.73 each
Backorder
Backorder
Get it Thu, Nov 2 - Thu, Nov 9
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
230/460v
RPM icon
1725 RPM
Rotation icon
Reversible
Horse Power icon
1/4 HP
Mount icon
Resilient Base
Amperage icon
1.0/0.50 Amps

Description

General Purpose Motor - 1/4 HP, 1725 RPM, 3 PH (230/460V)

Features:
  • Motor will not accept a C-face kit
  • See XRI® Dripproof in Premium Efficiency section for NEMA Premium efficiencies
  • F1 mounting only, cannot reassemble to F2
  • Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower

Specs

Type:

General Purpose

RPM:

1725

Amperage:

1.0/0.50

Horse Power:

1/4

Voltage:

230/460v

Phase:

3

Mount:

Resilient Base

Frame:

48

Bearings:

Ball

Rotation:

Reversible

Enclosure Type:

Drip Proof

Motor:

Squirrel Cage Inverter

Poles:

4

Duty:

Continuous

Speeds:

1

Max Ambient Temp (°F):

104°F

Insulation Class:

B

Motor Orientation:

Horizontal

Overload Protection:

None
