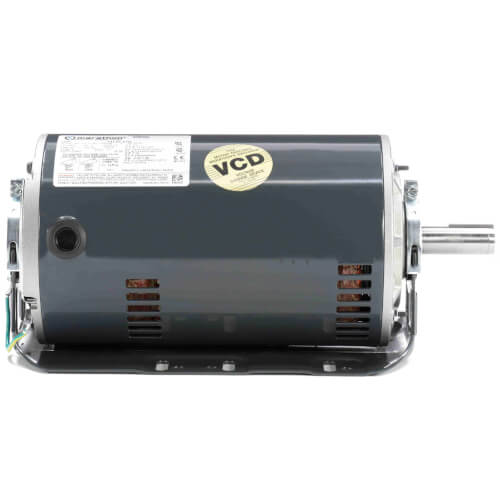

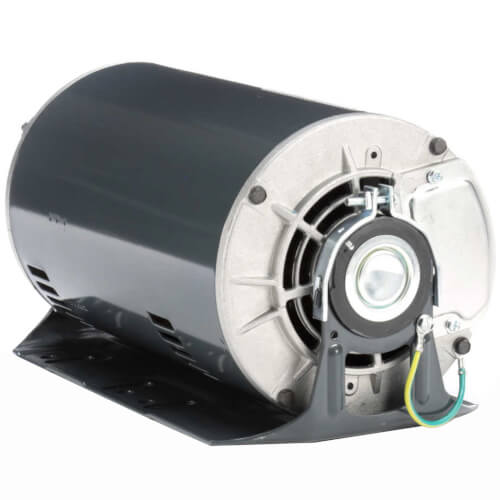

Main product image of Blower Motor - 3 HP, 1800 RPM, 3 PH, Reversible, Single Speed (208-230/460V)

Hover image to zoom

Blower Motor - 3 HP, 1800 RPM, 3 PH, Reversible, Single Speed (208-230/460V)

Name: Blower Motor - 3 HP, 1800 RPM, 3 PH, Reversible, Single Speed (208-230/460V)
Brand: Marathon Motors
SKU: G145
Price: 756.70 USD
Availability: InStock

Brand:

Marathon Motors

SKU:

G145

Rating:

(0)

Q&A:

(0)

Blower Motor - 3 HP, 1800 RPM, 3 PH, Reversible, Single Speed (208-230/460V)

Hover image to zoom

G145 has been discontinued

Discontinued October 11, 2023

This product was discontinued by the manufacturer.

MANUALS (2)

Product Highlights

–

208-230/460v

1725 RPM

Reversible

3 HP

Resilient Base

9.2 Amps

Description

–

Blower Motor, 3HP, 208-230/460Vac, Three Phase, 1800 RPM, 9.2-8.6/4.3 Amps, 56HZ Frame Size, Open Drip Proof, Resilient Base

Features:

Single speed model
Ball bearings
Heavy gauge steel frame and base
56H, 143T, and 145T combination base with 12 mounting holes
Nameplated 60/50 Hz at next lower horsepower
Patented VCD, Voltage Change Device where footnoted "VC"
56HZ with 7/8" shaft diameter, 3-1/2" shaft height, and slotted 56 frame base

Specs

–

Type:	Blower
RPM:	1725
Amperage:	9.2
Horse Power:	3
Voltage:	208-230/460v
Phase:	3
Frame:	56HZ
Mount:	Resilient Base
Bearings:	Ball
Rotation:	Reversible
Enclosure Type:	Drip Proof
Frequency:	60 Hz
Motor:	Squirrel Cage Induction Run
Poles:	4
Duty:	Continuous
Speeds:	1
Efficiency:	84%
Max Ambient Temp (°F):	104°F
Insulation Class:	B
Overload Protection:	Automatic
Motor Orientation:	Horizontal
