3 PH ODP Globetrotter General Purpose Motor, 324T Frame (230/460V, 1780 RPM, 40 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
'/%3E%3C/svg%3E)
Hover image to zoom
3 PH ODP Globetrotter General Purpose Motor, 324T Frame (230/460V, 1780 RPM, 40 HP)
$3,110.86 each
In Stock
Get 4 Wed, Feb 15 - Mon, Feb 20
MANUALS (3)
Lift Gate
–
This product weighs 452 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230/460v
Reversible
40 HP
Rigid Base
95.5, 48 Amps
Description
–

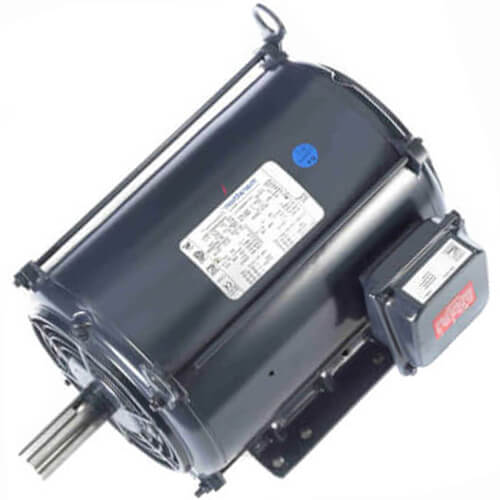

Note: Image does not reflect actual product.
3 PH ODP Globetrotter General Purpose Motor, 324T Frame (230/460V, 1780 RPM, 40 HP)
Product Description
3 PH ODP Globetrotter General Purpose Motor, 324T Frame (230/460V, 1780 RPM, 40 HP)
Product Description
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- 182T-365T models steel frame, 404T-449T models cast iron frame
- Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
- 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting
Specs
–
| Type: | General Purpose |
|---|---|
| Voltage: | 230/460v |
| Amperage: | 95.5 48 |
| Horse Power: | 40 |
| Frame: | 324T |
| Phase: | 3 |
| Mount: | Rigid Base |
| Bearings: | Ball |
| Rotation: | Reversible |
| Enclosure Type: | Open Drip Proof |
| Motor: | 3-Phase Squirrel Cage Inverter |
| Duty: | Continuous |
| Poles: | 4 |
| Max Ambient Temp (°F): | 104°F |
| Insulation Class: | F |
| Motor Orientation: | Horizontal |
| Overload Protection: | None |
