Description

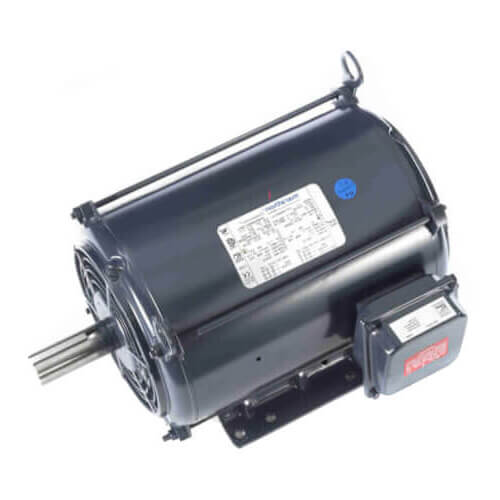

Note: Image does not reflect actual product.

3 PH TEFC Globetrotter General Purpose Motor, 215T Frame (230/460V, 1180 RPM, 5 HP)

Product Description
  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2009
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.
  • C-face addition may result in non-NEMA "BA" dim. For new "BA" dim consult chart found in modification section
Read more
Specs
Type:
General Purpose
Voltage:
230/460v
Amperage:
13.6
6.8
Horse Power:
5
Frame:
215T
Phase:
3
Mount:
Rigid Base
Bearings:
Ball
Rotation:
Reversible
Enclosure Type:
Totally Enclosed Fan-Cooled (TEFC)
Motor:
Squirrel Cage Inverter
3-Phase
Duty:
Continuous
Poles:
6
Max Ambient Temp (°F):
104°F
Insulation Class:
F
Motor Orientation:
Horizontal
Overload Protection:
None
×
