Description

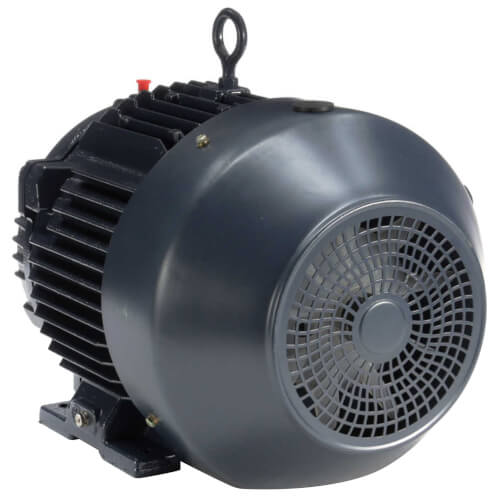

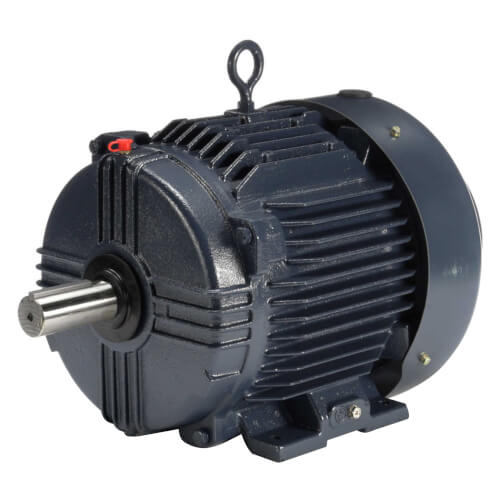

3 Phase TEFC General Purpose Motor, 213T Frame (230/460V, 1768 RPM, 7.5 HP)

Product Description
  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2010
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.
  • C-face addition may result in non-NEMA "BA" dim. For new "BA" dim consult chart found in modification section
Hide Description
Specs
Type:

General Purpose

Voltage:

230/460v

Amperage:

9.5

19

Horse Power:

7-1/2

Phase:

3

Mount:

Rigid Base

Bearings:

Ball

Rotation:

Reversible

Frame:

213T

Enclosure Type:

Totally Enclosed Fan-Cooled (TEFC)

Motor:

Squirrel Cage Inverter

3-Phase

Duty:

Continuous

Poles:

4

Max Ambient Temp (°F):

104°F

Insulation Class:

F

Motor Orientation:

Horizontal

Overload Protection:

None

×
