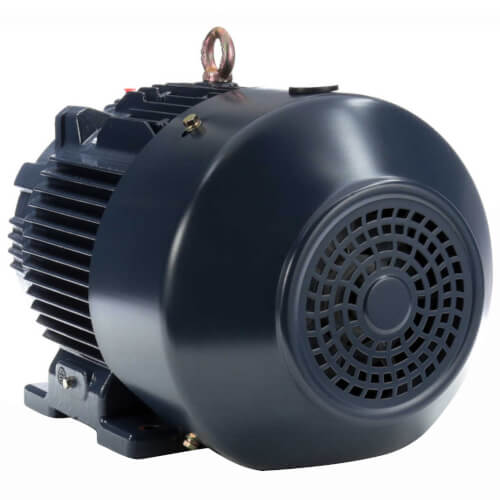

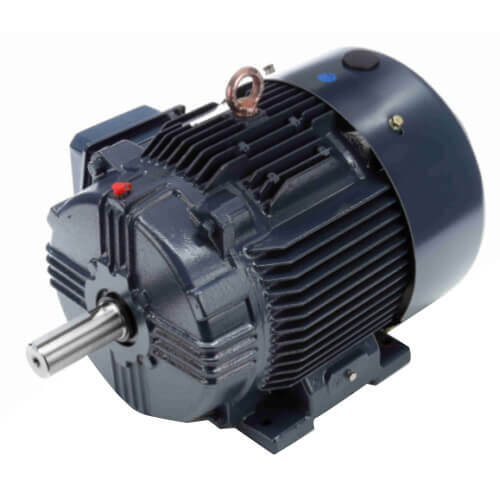

3 Phase TEFC Globetrotter General Purpose Motor, 254T Frame (230/460V, 1772 RPM, 15 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,296.79 each
In Stock
Get 23 Wed, Jul 8 - Fri, Jul 10
MANUALS (3)
Lift Gate
–
This product weighs 299 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230/460v
Reversible
15 HP
Rigid Base
37.5 Amps
Description
–
3 Phase TEFC Globetrotter General Purpose Motor, 254T Frame (230/460V, 1772 RPM, 15 HP)
Product Description
Product Description
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2014
- Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
- IP55 enclosure on cast iron frames
- Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
- C-face addition may result in non-NEMA "BA" dim. For new "BA" dim consult chart found in modification section
Specs
–
| Type: | General Purpose |
|---|---|
| Voltage: | 230/460v |
| Amperage: | 37.5 |
| Horse Power: | 15 |
| Frame: | 254T |
| Phase: | 3 |
| Mount: | Rigid Base |
| Bearings: | Ball |
| Rotation: | Reversible |
| Enclosure Type: | Totally Enclosed Fan-Cooled (TEFC) |
| Motor: | 3-Phase Squirrel Cage Inverter |
| Duty: | Continuous |
| Poles: | 4 |
| Max Ambient Temp (°F): | 104°F |
| Insulation Class: | F |
| Overload Protection: | None |
| Motor Orientation: | Horizontal |
